Advances in Raman Spectroscopic Detection of Pesticide Residues: Focus on Substrate Innovations

2.1 CPF

CPF is an organophosphate pesticide that is widely used in agriculture to control various insect pests. Despite its effectiveness in crop protection, CPF has been subject to increasing regulatory scrutiny owing to its potential toxicity to humans and the environment. Its mechanism of action involves the inhibition of acetylcholinesterase, which is an essential enzyme in the nervous system [15,16]. Prolonged or acute exposure to CPF can disrupt cholinergic neurotransmission and lead to neurotoxicity, developmental disorders, and behavioral abnormalities, particularly in vulnerable populations such as children and pregnant women [17,18].

Multiple studies have linked prenatal exposure to CPF to adverse neurodevelopmental outcomes, including reduced IQ, attention deficits, and motor delays. These findings have prompted regulatory bodies in several countries, including the European Union and United States, to restrict or ban the use of CPF in food production and residential environments [19].

CPF persists in soil and water, where it poses ecotoxicological risks to nontarget organisms such as aquatic invertebrates, pollinators, and birds. Owing to the high bioaccumulation potential and low water solubility of CPF, CPF residues can enter the food chain and affect human health through dietary exposure.

Based on these toxicological and ecological risks, the sensitive and selective detection of CPF residues in food and environmental samples has become an important analytical challenge. Advanced detection platforms, such as SERS-based sensors, provide promising solutions for real-time monitoring at trace levels, which is critical for ensuring food safety and environmental protection.

2.2 Thiram

Thiram is a dithiocarbamate fungicide that is extensively used in agriculture to prevent fungal infections in seeds, fruits, and vegetables. Despite its effectiveness as a preventive agent, thiram poses notable health and ecological risks; this has led to ongoing evaluation by regulatory agencies [20].

Thiram interferes with cellular oxidative balance and enzyme function, particularly by inhibiting key sulfhydryl-containing enzymes. Acute exposure in humans can cause skin and eye irritation, headaches, nausea, and respiratory distress, whereas chronic exposure is associated with reproductive toxicity, liver and kidney damage, and potential neurotoxic effects [21].

Exposure to thiram occurs primarily through the consumption of contaminated food or occupational contact during pesticide spraying. Thiram is moderately mobile and can leach into the soil and water, thereby posing a risk to aquatic life. It is particularly toxic to fish and aquatic invertebrates and affects nontarget terrestrial species such as birds and pollinators. Although it is relatively unstable in sunlight and tends to degrade more rapidly than other pesticides, its transformation products may retain biological activity and contribute to the cumulative environmental burden [22].

Given its toxicity at low concentrations and environmental persistence, the development of sensitive detection methods for thiram residues in food and environmental matrices is essential.

2.3 TBZ

TBZ is a benzimidazole-class fungicide and anthelmintic agent that is widely used to control mold, blight, and rot in post-harvest crops such as citrus fruits, bananas, and potatoes [23-25]. It is also used in veterinary and human medicine to treat parasitic worm infections. Although the acute toxicity of TBZ is generally lower than that of numerous other pesticides, concerns remain regarding its long-term exposure effects and metabolic persistence, which may pose significant toxicological and environmental risks [26-29].

In humans, therapeutic doses of TBZ are typically considered safe. However, excessive or prolonged exposure is associated with elevated hepatic enzyme levels, gastrointestinal disturbances, and potential neurotoxic effects [30,31].

Owing to the widespread use of TBZ in post-harvest treatment, TBZ residues are frequently found on fruits and vegetables. Thus, dietary intake is the primary route of human exposure to TBZ, particularly in populations with high consumption of treated produce.

TBZ can leach into the soil and aquatic ecosystems, where it exhibits moderate toxicity to nontarget organisms such as algae, daphnids, and fish. Although its environmental persistence is generally lower than that of organophosphates, its broad-spectrum biocidal properties raise concerns regarding unintended impacts on beneficial species including soil microbes and pollinators. These risks highlight the importance of the routine monitoring of residues to ensure food safety and environmental protection.

3.1 Basic concept of Raman scattering

Raman spectroscopy is a nondestructive analytical technique that utilizes the energy-level differences caused by light scattering by a material to determine its molecular structure and chemical properties. The Raman scattering effect was first experimentally observed in 1928 by Indian physicists C.V. Raman and K.S. Krishnan [32]. Since then, Raman spectroscopy has been widely recognized as a powerful analytical method because of its ability to provide unique molecular fingerprints for various materials [33,34].

As illustrated in Fig. 1 (a), several types of light scattering can occur when a monochromatic laser beam is directed at a target molecule. Elastic scattering (Rayleigh scattering) occurs when the energy of scattered light is similar to that of incident light. However, inelastic scattering (Raman scattering) occurs when scattered light exhibits an energy shift compared with incident light. Stokes Raman scattering occurs when the energy of a scattered photon is lower than that of an incident photon, and anti-Stokes Raman scattering occurs when the energy of a scattered photon is higher than that of an incident photon.

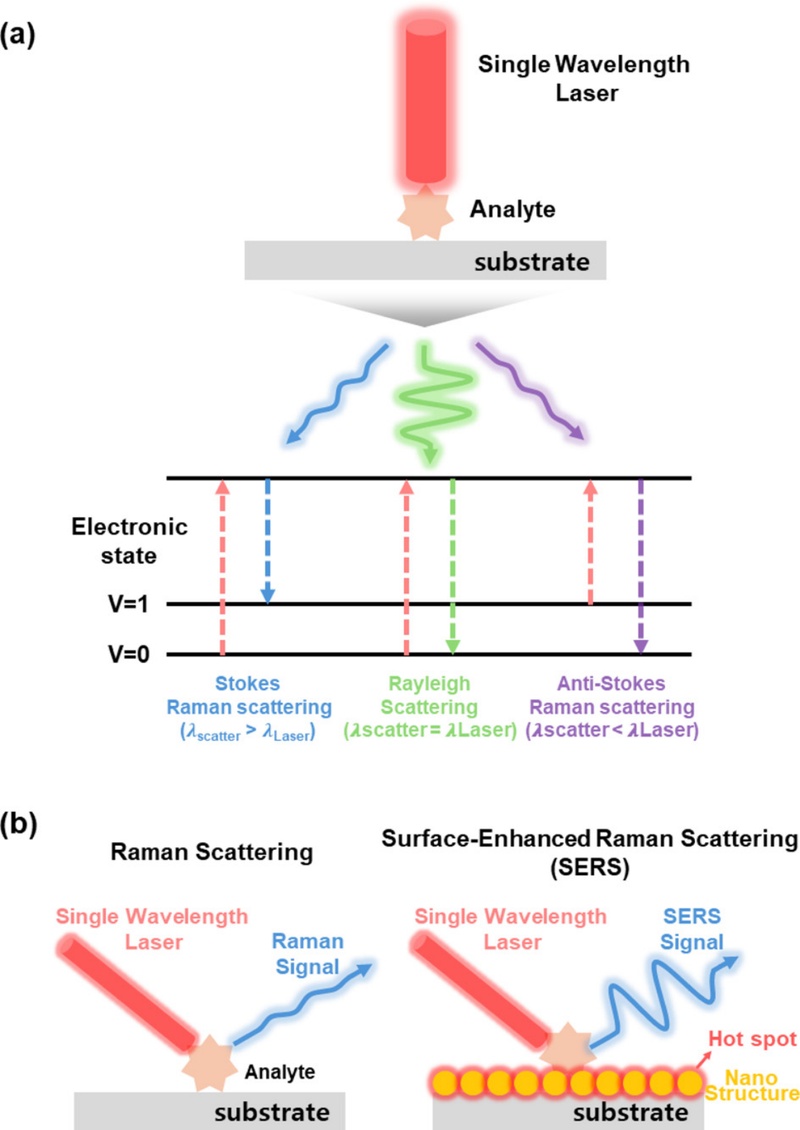

Fig. 1.

Schematic diagram of the concept of Raman scattering and SERS. Basic mechanisms of (a) Raman scattering and (b) SERS.

In Stokes Raman scattering, the incident photon transfers a portion of its energy to the molecule, thereby exciting it from its ground vibrational state to a higher vibrational state. As a result, the scattered photon has lower energy (longer wavelength) compared with the incident photon. Stokes scattering generally dominates the Raman spectrum because most molecules exist in their ground vibrational states (v = 0) at room temperature.

In contrast, anti-Stokes Raman scattering occurs when the molecule is initially in an excited vibrational state and transfers energy to the scattered photon. This results in a scattered photon with higher energy (shorter wavelength) compared with the incident photon. As the population of molecules in excited vibrational states is significantly lower under ambient conditions, anti-Stokes signals are typically considerably weaker than Stokes signals [35].

Similarly, the energy difference between incident and scattered photons directly corresponds to the specific vibrational energy levels of a molecule, leading to a characteristic Raman spectrum that serves as a molecular fingerprint. On this basis, Raman spectroscopy can be used to identify molecular structures and monitor chemical interactions without complex labeling or extensive sample preparation. These fundamental principles form the basis for the widespread application of Raman spectroscopy in the chemical, biological, and environmental fields.

3.2 SERS mechanism

Raman spectroscopy is a highly versatile analytical technique used in numerous scientific and industrial fields. Despite its valuable analytical capability, Raman scattering is an intrinsically weak phenomenon, where approximately one in every 10⁸ incident photons experience Raman scattering. This efficiency is approximately six to ten orders of magnitude lower than that of fluorescence. This substantially limits the sensitivity of Raman scattering in conventional applications.

SERS has been developed to overcome this fundamental limitation. SERS significantly amplifies the Raman signals of the molecules that are adsorbed onto nanostructured metallic surfaces, particularly those composed of noble metals such as Ag and Au. This phenomenon was first documented by Fleischmann et al., who reported a significant enhancement in the Raman signal of pyridine molecules on a roughened Ag electrode [36]. This finding led to extensive research that ultimately identified two principal mechanisms of the SERS effect: electromagnetic and chemical enhancement. A conceptual illustration of the Raman scattering and SERS mechanisms is shown in Fig. 1 (b).

The electromagnetic enhancement mechanism is primarily driven by the excitation of surface plasmons when light interacts with metallic nanostructures. Surface plasmons refer to the collective oscillations of conduction electrons on the surfaces of metals, which can strongly couple with incident light at specific resonance frequencies. When the frequency of incident light matches the surface plasmon resonance of metal nanoparticles, intense localized electromagnetic fields are generated close to the particle surface [37]. These concentrated fields, particularly within hot spots (nanoscale junctions or crevices between particles), can theoretically amplify a Raman signal by up to 10¹⁰ times, thereby making this mechanism the dominant contributor to the SERS effect.

Chemical enhancement also plays a significant role in SERS. This mechanism involves direct physicochemical interactions between an analyte and metallic substrate, which are typically facilitated by charge transfer between a molecule and metal surface. The polarizability of the molecule is altered because of this interaction, which increases its Raman scattering cross section. When the molecule is adsorbed onto the metal surface, the change in its polarizability is more than that when it is freely dispersed, leading to a noticeable amplification of the Raman signal. Although the enhancement factor (typically between 10² and 10⁴) is lower compared with electromagnetic enhancement, it can increase depending on the molecular system.

The synergistic combination of electromagnetic and chemical enhancement enables SERS to achieve exceptionally high sensitivity and selectivity, thereby allowing for the detection of trace-level analytes even in complex sample matrices. Moreover, the ability to produce unique Raman spectra, which are typically described as molecular fingerprints, supports label-free detection and precise molecular identification. These characteristics make SERS particularly suitable for real-time monitoring and in-situ chemical analysis.

Note that the design and fabrication of SERS substrates are critical for maximizing the enhancement effect. Key factors, such as the size, shape, interparticle spacing, and surface morphology of metallic nanostructures, must be carefully engineered to optimize the electromagnetic field strength and efficiency of chemical interactions. The performance of an SERS-based detection platform strongly depends on the quality and reproducibility of the substrate, which is a key topic in the advancement of the SERS technology.

3.3 Substrates for maximizing SERS effect

Research on SERS substrates has evolved through innovative approaches including the fabrication of nanostructures that enhance local electromagnetic fields and the use of bimetallic combinations to utilize synergistic plasmonic effects [38]. Fig. 2 shows a range of SERS substrates based on these principles.

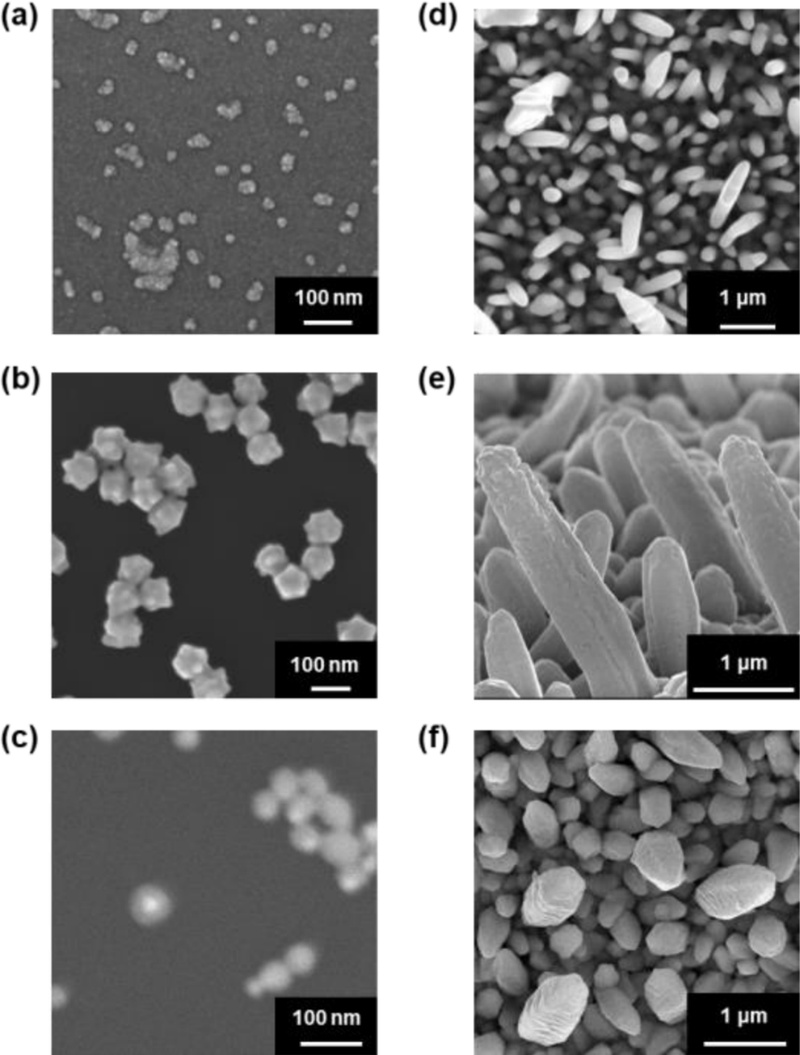

Fig. 2.

Various nanoparticles and structures used as SERS substrates. SEM image of (a) GNPs, (b) TFNPs, (c) BNPs, (d) SNPis, (e) BNPis, and (f) nanocoral substrate.

Nanoparticle-based substrates have played a key role in the advancement of the SERS technology. Metallic nanoparticles can generate strong localized electromagnetic fields through surface plasmon resonance, which significantly amplifies inherently weak Raman signals. Furthermore, nanoparticles provide a large active surface area for molecular adsorption owing to their high surface-to-volume ratio, thus enabling the highly sensitive detection of trace analytes.

For instance, spherical Au nanoparticles (GNPs) (Fig. 2 (a)) are chemically stable and can be easily functionalized with various compounds, including biomolecules, thereby making them ideal for the selective detection of low-concentration targets. GNPs with spiked or roughened surfaces (Thuja fruit-like nanoparticles, TFNPs) (Fig. 2 (b)) induce localized surface plasmon “hot spots” in the gaps between protrusions and further enhance the SERS effect without interparticle aggregation.

Bimetallic nanoparticles (BNPs), such as Au-core/Ag-shell structures (Fig. 2 (c)), have been developed to combine the advantages of the superior plasmonic enhancement of Ag and chemical stability of Au. These hybrid nanostructures exhibit tunable optical properties and are well suited for diverse SERS applications.

In addition to nanoparticles, nanostructure-based SERS substrates have attracted increasing attention because of their ability to generate uniform and reproducible signal enhancement. Unlike nanoparticle-based platforms, which typically confine hotspots to 2D surfaces, nanostructured substrates can create 3D architectures that generate dense and spatially distributed hot spots. This leads to improved signal amplification and reproducibility, thus providing broader potential for practical sensing applications.

An example of such a structure is Ag nanopillars (SNPi) (Fig. 2 (d)), which consist of vertically aligned and regularly spaced nanocolumns fabricated through electrochemical deposition using a three-electrode system. Based on this structure, Au@Ag bimetallic nanopillars (BNPi) (Fig. 2 (e)) have been synthesized through a galvanic replacement reaction, in which Au ions react with preformed Ag nanocolumns to form hybrid structures. These substrates have the combined advantages of columnar geometry and dual-metal composition, which significantly enhance SERS signals.

In recent years, coral-like nanocolumn substrates have been developed by codepositing Au and Ag ions and selectively etching Au using nitric acid, resulting in porous mixed-metal surfaces (nanocoral substrates) (Fig. 2 (f)). These structures maximize the number of hot spots and the surface contact area with target analytes, leading to superior SERS performance through bimetallic and surface roughness effects.

The progressive development of nanotechnology-based SERS substrates has provided new opportunities for ultrasensitive detection and monitoring in complex environments. These substrates are highly suitable for analyzing environmentally hazardous substances, including residual pesticides, which require sensitive and selective monitoring.

4.1 CPF detection using SNPi substrate

A study has demonstrated the detection of CPF using an electrochemically fabricated SNPi substrate [39]. As shown in Fig. 3 (a), when an overpotential is applied to a Au-coated silicon (Si) substrate using a three-electrode system, Ag nanostructures grow and uniformly cover the surface to form vertically aligned SNPi structures; this is confirmed via scanning electron microscopy (SEM) imaging.

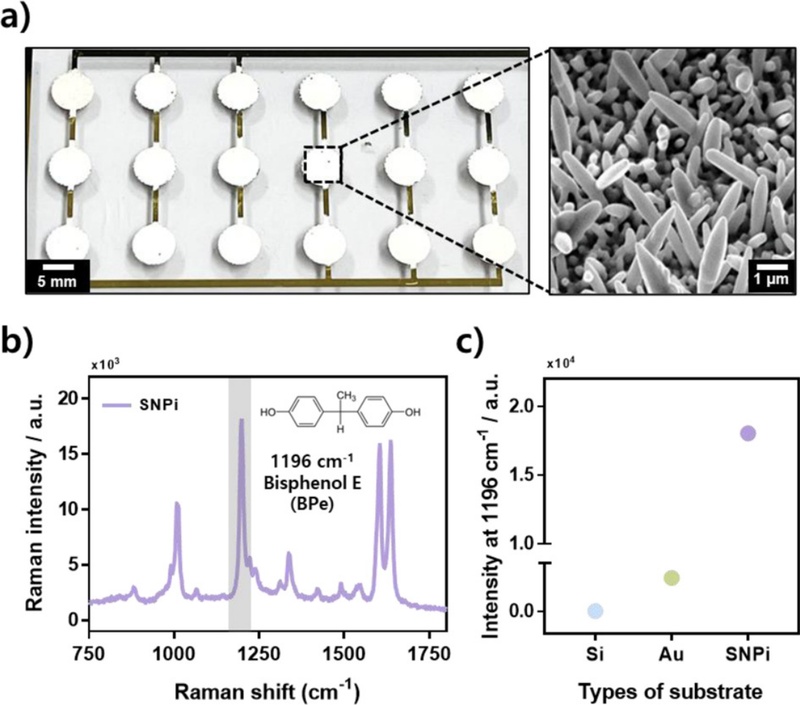

Fig. 3.

Fabrication and performance evaluation of SNPi. (a) Actual shape of SNPi substrate (scale bar: 5 mm) and its SEM image. (b) Raman spectrum and molecular structure of BPe. (c) Comparison of Raman intensities at 1196 cm-1 after reaction of 1 mM BPe with Si, Au, and SNPi [40].

To evaluate the SERS performance of the SNPi substrate, bisphenol E (BPe), which is a representative Raman reporter molecule, is applied to three different substrates: a bare Si wafer, Au-coated substrate, and fabricated SNPi. The Raman spectra of BPe obtained for each substrate are shown in Fig. 3 (b). Among the characteristic peaks, the signal intensity at 1196 cm^-1 is compared because of its high Raman activity. As illustrated in Fig. 3 (c), the SNPi substrate exhibits the highest Raman signal intensity, thus confirming its superior performance in SERS-based detection.

Based on the SERS performance of the SNPi substrate, a concentration-dependent detection study is conducted to evaluate its sensitivity for CPF detection. The analyte is tested at concentrations of 100 μM, 1 μM, and 10 nM, and the corresponding SERS spectra are shown in Fig. 4 (a). Among the characteristic Raman peaks of CPF, those at 1140 cm^-1, 1265 cm^-1, and 1448 cm^-1 are selected for quantitative comparison. As shown in Fig. 4 (b), the Raman intensity of these peaks increases proportionally with the concentration, and CPF is clearly detected even at a low concentration of 10 nM.

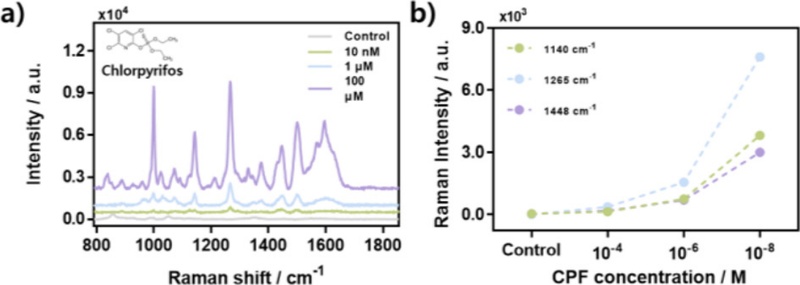

Fig. 4.

Detection results of CPF using SNPi substrate. (a) Spectral results for CPF detection at different concentrations (100 µM, 1 µM, 10 nM) in SNPi. (b) Comparison of Raman intensities at different concentrations for specific Raman peaks of CPF (1140 cm-1, 1265 cm-1, 1448 cm-1) [40].

This result highlights the capability of the platform for the ultrasensitive detection of CPF, which is difficult to detect at trace levels using conventional methods. Therefore, this study demonstrates the potential of the SNPi-based SERS substrate as a foundational technology for future applications in monitoring environmental toxicants using label-free and highly sensitive Raman spectroscopy [40].

4.2 Thiram detection using TFNPs@SNPi substrate

A study has proposed a hybrid SERS substrate that combines the previously discussed SNPi structure with nanoparticles to enhance the SERS effect [41]. Although the standalone 3D SNPi substrate provides strong signal enhancement owing to its vertically aligned nanostructures, it has a limitation in terms of the nonuniform hotspot distribution caused by structural irregularities. Metallic nanoparticles are incorporated into the system to overcome this limitation.

The nanoparticles effectively complement the uneven regions of the SNPi substrate, leading to the formation of uniformly distributed electromagnetic hotspots. TFNPs are used for this purpose because of their intrinsic hotspot-rich architecture. When combined with the SNPi substrate, these TFNPs significantly improve the overall SERS performance by introducing additional nanoscale hotspots and improving local field enhancement.

TFNPs are synthesized by growing nanoscale Au protrusions on the surface of spherical Au nanoparticles through a controlled reduction reaction using hydroquinone as the reducing agent and HAuCl₄ as the Au precursor. This process creates a rough and uneven surface morphology, which contributes to the generation of numerous SERS-active hotspots. A schematic of the synthesis process is presented in Fig. 5 (a). The optimal TFNP morphology, which is achieved by precisely controlling the reducing agent concentration and reaction time, is confirmed via SEM imaging.

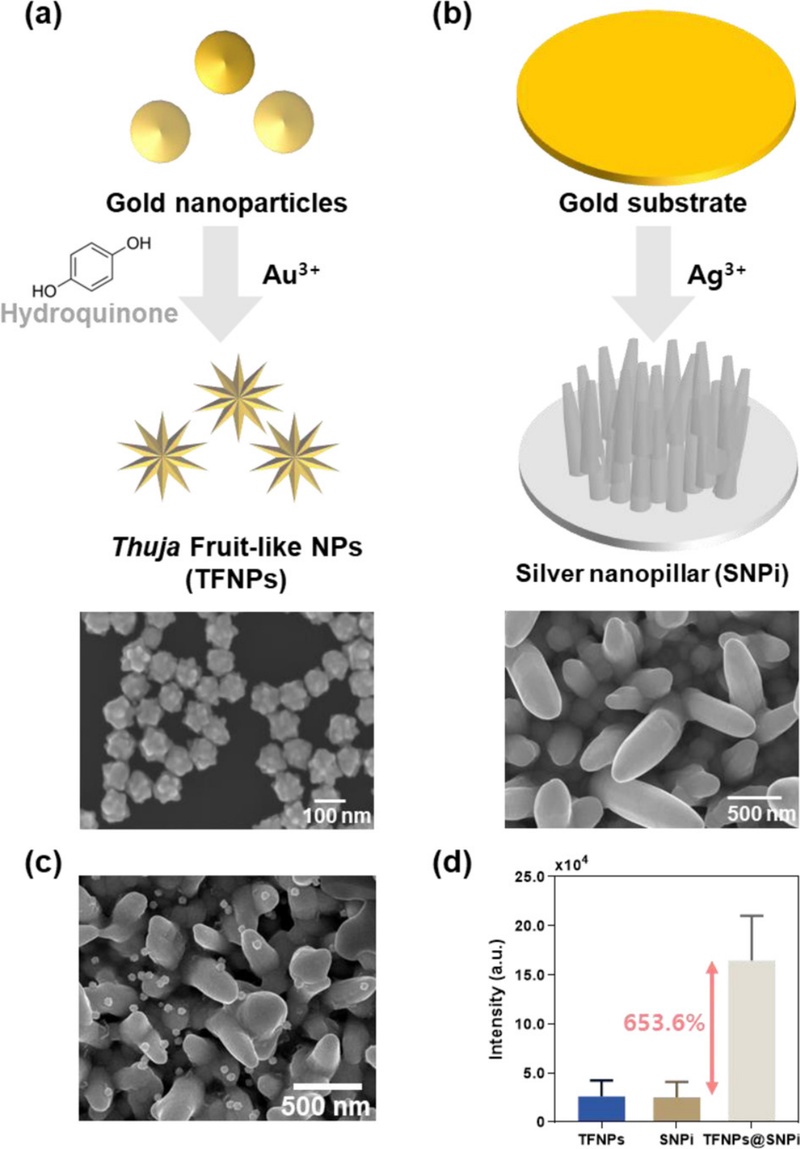

Fig. 5.

Fabrication and performance evaluation of TFNPs@SNPi. (a) TFNPs fabricated by adding a reducing agent (hydroquinone) to spherical Au nanoparticles and their SEM image. (b) SNPi fabricated using electrochemical method and their SEM image. (c) Hybrid TFNPs@SNPi substrate fabricated by mixing the fabricated TFNPs and SNPis. (d) Raman intensity obtained after quantitative reaction of 4-ATP with TFNPs, SNPis, and TFNPs@SNPi [41].

The SNPi substrate is fabricated using the same procedure as that employed in the previous CPF detection study. A Aucoated glass slide is subjected to an applied overpotential of -2 V in a three-electrode electrochemical system, which induces the vertical growth of Ag nanostructures. A schematic of the fabrication process is shown in Fig. 5 (b), and the corresponding SEM images confirm the successful formation of vertical SNPis.

The two components—TFNPs and SNPi—are integrated into a hybrid TFNPs@SNPi substrate using an optimized coupling strategy (Fig. 5 (c)). The SERS performance of the substrate is evaluated by applying 4-aminothiophenol (4-ATP), which a commonly used Raman reporter molecule, to the individual TFNP, SNPi, and hybrid TFNPs@SNPi substrates. The TFNPs@SNPi substrate exhibits a Raman signal enhancement of more than 653.6% compared with the individual components, thus demonstrating its superior SERS amplification capability (Fig. 5 (d)).

Based on the maximum enhancement in the performance of the TFNPs@SNPi hybrid substrate, its ability to detect thiram is systematically evaluated. Thiram solutions with various concentrations are applied to the substrate, and the corresponding Raman spectra are recorded. As shown in Fig. 6 (a), strong Raman signals are observed at 1380 cm^-1, which is a characteristic peak of thiram, in the high-concentration range. Even at lower concentrations, distinguishable signals are clearly observed at 1380 cm^-1 compared with the control (Fig. 6 (b)).

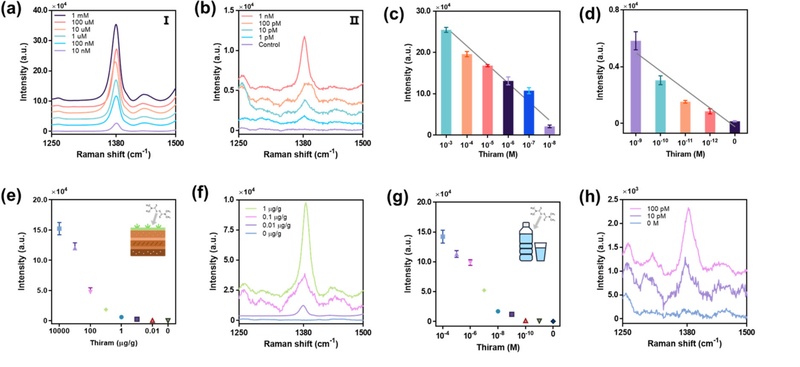

Fig. 6.

Thiram detection results under various conditions using TFNPs@SNPi substrate. (a) Raman spectra around a specific peak (1380 cm-1) of high-concentration thiram. (b) Raman spectra around a specific peak (1380 cm-1) of low-concentration thiram. (c) Comparison of Raman intensities at 1380 cm-1 for high and (d) low concentrations of thiram. (e, f) Comparison of Raman intensities and spectra for different concentrations of thiram in soil. (g, h) Comparison of Raman intensities and spectra for different concentrations of thiram in drinking water [41].

Quantitative analysis shows that the Raman intensity at 1380 cm^-1 increases proportionally with the thiram concentration (Figs. 6 (c) and (d)), and the limit of detection is experimentally determined to be 120 fM.

To assess the applicability of the substrate in real-world conditions, thiram is detected in complex matrices such as soil and water, where accidental pesticide leakage is likely to occur. For the soil analysis, garden soil is obtained from a local market and used without pretreatment to better mimic environmental conditions, including potential interfering substances. Soil–thiram mixtures are prepared by adjusting the mass of thiram mixed with 1 g of soil to achieve final concentrations of 0–10 mg/g. The Raman spectra of these samples are recorded, and the intensity at 1380 cm^-1 is analyzed (Fig. 6 (e)). The detection limit of thiram in soil is calculated as 1.06 ng/g (Fig. 6 (f)).

Water is selected as another relevant medium because of its high exposure potential and direct implications for human and animal health. Thiram solutions with concentrations of 0–100 μM are prepared in distilled water. Similar to the previous experiments, the Raman intensities at 1380 cm^-1 are measured (Fig. 6 (g)), and the detection limit is calculated to be as low as 762 fM (Fig. 6 (h)).

In summary, despite the presence of various interfering substances in environmental samples such as soil and water, the sensitivity of the TFNPs@SNPi-based SERS sensor is comparable to that achieved under controlled laboratory conditions. These findings highlight the potential of the platform for the practical and field-deployable monitoring of thiram residues, particularly in actual leakage scenarios.

4.3 TBZ detection using BNP@SNPi Substrate

A study has developed a hybrid BNP@SNPi SERS substrate, which incorporates Au@Ag BNPs into SNPis to enhance the SERS effect [42]. This substrate retains the advantages of 3D-structured SNPis, such as a high surface area and vertical nanostructure-induced hotspot formation, while addressing their inherent limitation of nonuniform hotspot distribution through the functional integration of BNPs.

BNPs are strategically designed to combine the plasmonic characteristics of Au and Ag. Au nanoparticles exhibit plasmon resonance in the red-to-near-infrared region, whereas Ag shows strong plasmonic resonance in the visible range. BNPs combine these metals to provide a broadband plasmonic response, thereby enabling stronger and more efficient electromagnetic field enhancement under laser excitation compared with their single-metal counterparts. As a result, the BNP@SNPi substrate is expected to achieve the maximum SERS performance by leveraging the synergistic effects of bimetallic plasmon coupling and nanostructure-induced hotspot localization.

The BNPs are synthesized using Au nanoparticles as seeds, followed by the reduction of AgNO₃ with ascorbic acid to form a Ag shell around the Au core [43]. Well-defined Aucore/Ag-shell BNPs are fabricated through a series of optimization steps, and their morphologies are confirmed via SEM imaging (Fig. 7 (a)). Energy-dispersive X-ray spectroscopy (EDS) performed on transmission electron microscopy (TEM) images further validates the core–shell structure and clearly indicates that the core consists of Au and the outer shell is composed of Ag (Fig. 7 (b)).

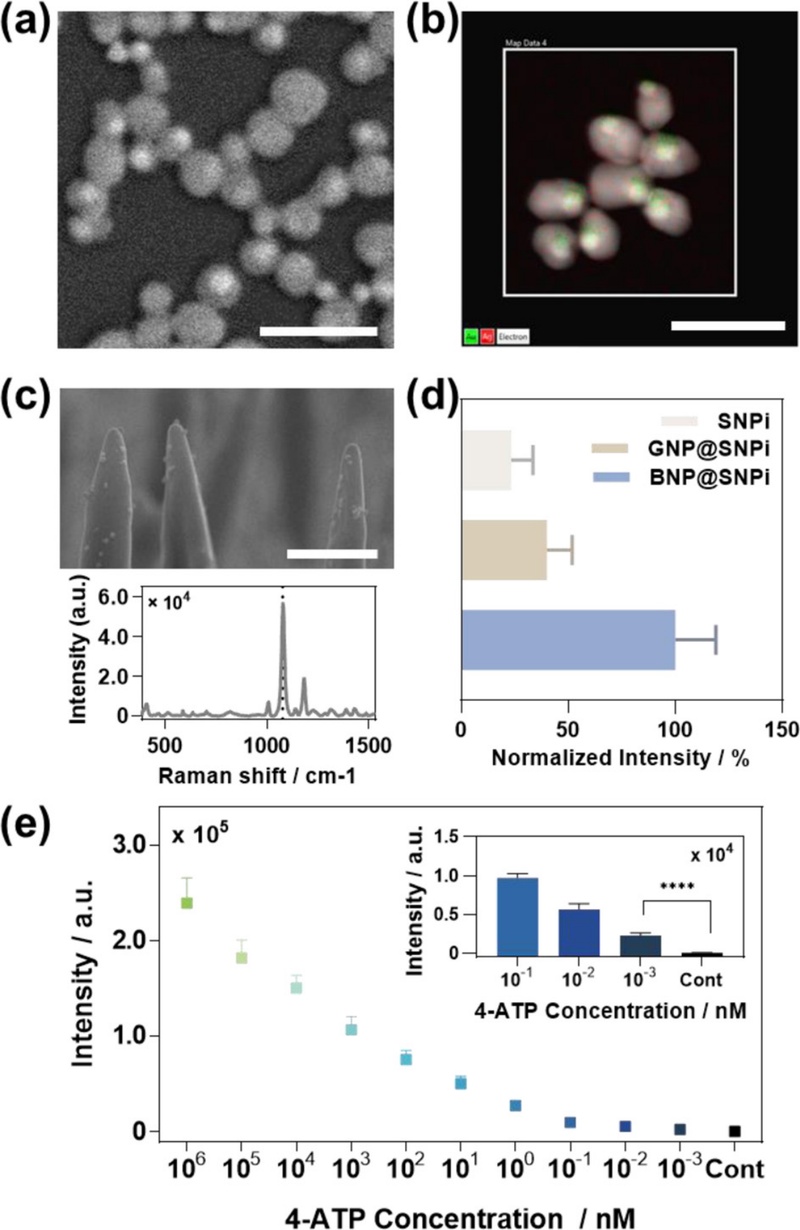

Fig. 7.

Fabrication and performance evaluation of BNP@SNPi. (a) SEM image of BNPs. (b) TEM EDS and (c) SEM images of hybrid BNP@SNPi substrate and Raman spectrum obtained using 4-ATP (10 µM). (d) Comparison of Raman intensity at 1076 cm-1 after quantitative reaction of 4-ATP with SNPis, GNP@SNPis, and BNP@SNPis, respectively. (e) Raman performance evaluation through reaction of BNP@SNPi substrate with various concentrations of 4-ATP [42].

The synthesized BNPs are subsequently functionalized onto the SNPi substrate to construct the hybrid BNP@SNPi SERS platform (Fig. 7 (c)). The SERS performance of the hybrid substrate is compared with those of the SNPi and GNP@SNPi substrates. 4-ATP (10 μM) is applied to each substrate, and the Raman intensity at the characteristic peak of 1076 cm^-1 is measured. As shown in Fig. 7 (d), the BNP@SNPi substrate exhibits the highest signal intensity, which is attributed to the synergistic plasmonic enhancement due to the bimetallic BNPs and high-density hotspots within the 3D SNPi structure.

The concentration-dependent detection of 4-ATP is performed to validate the sensitivity of the substrate. As illustrated in Fig. 7 (e), the detection limit of the BNP@SNPi platform is as low as 103 fM, which demonstrates its excellent potential for ultratrace molecular sensing.

The ability of the BNP@SNPi substrate to detect TBZ is evaluated. As shown in Fig. 8 (a), the Raman spectra obtained for high and low concentrations of TBZ exhibit a strong characteristic peak at 782 cm^-1. The limit of detection is calculated as 1.06 pM (Fig. 8 (b)), which shows the exceptional sensitivity of the platform under laboratory conditions.

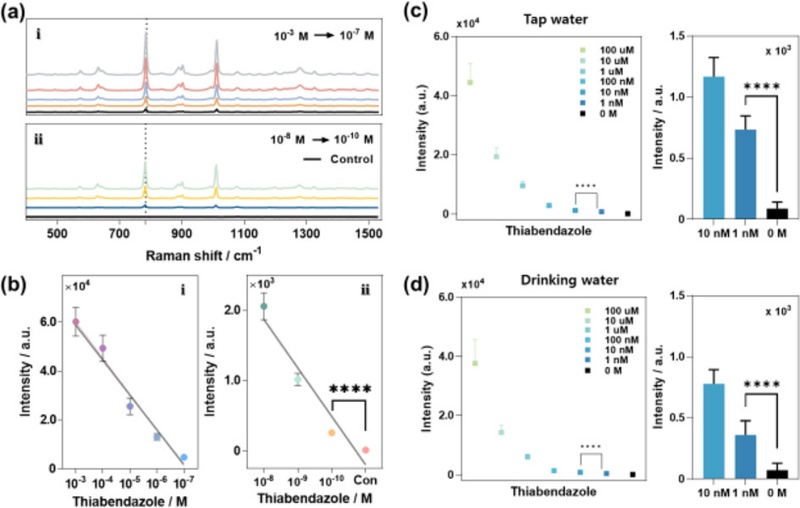

Fig. 8.

TBZ detection results under various conditions using BNP@SNPi substrate. (a) Raman spectra obtained at i) high and ii) low concentrations of TBZ. (b) Comparison of Raman intensity at 782 cm-1. (c) TBZ detection results for different concentrations based on tap water (actual environmental sample) and comparison of Raman intensities at 782 cm-1. (d) TBZ detection results for different concentrations based on drinking water and comparison of Raman intensities at 782 cm-1 [42].

To further assess the practical applicability of the BNP@SNPi substrate, TBZ is detected in environmental water samples where TBZ contamination is plausible, i.e., tap water and drinking water. TBZ is widely used in agricultural cultivation, and its potential to leach into public water supplies poses a concern. TBZ-spiked tap water samples are prepared at various concentrations and reacted with the BNP@SNPi substrate. The resulting Raman intensities at 782 cm^-1 in the low-concentration range are shown in Fig. 8 (c). A detection limit of 146.5 pM is calculated from these data, thus confirming the high sensitivity of the system in realistic aqueous matrices.

A similar approach is applied to drinking water samples, and the BNP@SNPi platform exhibits reliable detection performance. After the reaction of the TBZ solutions and substrate and the analysis of the Raman intensity at 782 cm^-1, a statistically significant signal is observed in the low-concentration range (confirmed via t-test), and the limit of detection is 245.5pM (Fig. 8 (d)).

These results highlight the high sensitivity and wide dynamic range of the BNP@SNPi SERS platform. The detection limits represent a few of the most sensitive TBZ detection results achieved using Raman-based techniques until now. This highlights the potential of the hybrid substrate for practical applications in environmental monitoring and food safety.
