Microneedle Electrodes Preserve Long-Term EMG Stability against Stratum Corneum Remodeling

1. INTRODUCTION

The stratum corneum (SC), the outermost layer of the skin, provides an essential barrier against the external environment but also imposes a critical challenge for epidermal bioelectronics. Because of its high electrical resistance and low ionic permeability, the SC significantly attenuates signal transmission between skin-mounted electrodes and the underlying tissues [1,2]. Conventional strategies to mitigate this barrier include conductive gels [3-6], skin preparation, and ultrathin-film-based epidermal electronics [7-14] that conform closely to the skin surface. Although such approaches improve initial coupling [15,16], they remain vulnerable to instability over time [17,18].

A key limitation is that the SC is not static; under continuous patch attachment, desquamation is suppressed, and corneocyte accumulation leads to progressive thickening. This remodeling process, although well recognized in dermatology, has rarely been documented in the context of bioelectrodes. As a result, long-term deterioration of signal quality is often ascribed generically to “interface degradation,” without direct histological or quantitative evidence linking performance loss to SC dynamics.

Microneedle (MN) electrodes offer a promising solution as they physically penetrate the SC and establish direct electrical contact with the viable epidermis [19,20]. Previous reports have shown that MNs can reduce electrode–skin impedance and achieve high-quality biopotential recordings [21-25]. However, whether MN electrodes can sustain stable signal acquisition, specifically under conditions of SC remodeling, has not yet been systematically validated. In particular, direct evidence connecting occlusion-driven SC thickening to signal degradation in film electrodesand its circumvention by MN penetrationremains lacking.

Here, we address this gap by combining electrophysiological measurements with histological and quantitative analyses. We demonstrate that prolonged patch attachment induces significant SC thickening, which directly compromises the film electrode performance but not that of the MN electrodes. As shown in Fig. 1, the equivalent circuit analysis reveals that the SC adds a resistive–capacitive burden to the film electrodes, whereas the MN electrodes bypass this barrier. Correspondingly, electromyography (EMG) recordings illustrate that film electrodes suffer from declining signal-to-noise ratios (SNRs) as the SC thickens, whereas the MN electrodes preserve stable high-quality signals. Building on this conceptual framework, the subsequent sections provide experimental evidence spanning fabrication, mechanical and electrical characterization, histological validation, and in vivo recordings to establish the SC as the decisive factor in long-term electrode stability and to highlight the resilience of MN electrodes against this barrier.

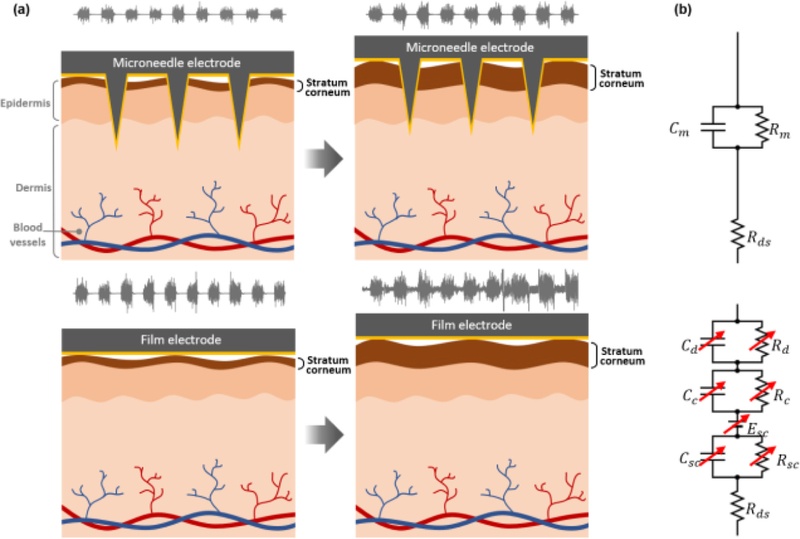

Fig. 1.

Concept and equivalent circuit of microneedle electrodes. (a) Application of microneedle and film electrodes to the skin. While the microneedle electrode was unaffected by the increasing thickness of the stratum corneum over time, the film electrode exhibited a decrease in the signal-to-noise ratio (SNR) due to the thickening stratum corneum, which hindered signal measurement. (b) The electrical equivalent circuit models of the microneedle and film electrode system on skin.

2. METHODS

3. RESULTS AND DISCUSSIONS

The concept illustrated in Fig. 1 was validated using direct signal measurements. Although both the film and MN electrodes initially recorded comparable EMG activity, only the MN electrodes maintained high-quality waveforms over time (Fig. 1(a)). In contrast, the film electrodes exhibited a progressive degradation of the SNR as the SC thickened, which was consistent with the equivalent circuit interpretation (Fig. 1(b)). These results confirm that the superior long-term performance of MN electrodes originates from their ability to bypass the SC barrier and preserve stable electrode–skin coupling.

To enable a controlled comparison, both electrode types were fabricated using an identical platform consisting of a parylene–Au–parylene stack patterned on PET substrates, with the sole distinction being the presence or absence of microneedle arrays. The detailed fabrication scheme is shown in Figs. 2 and 3.

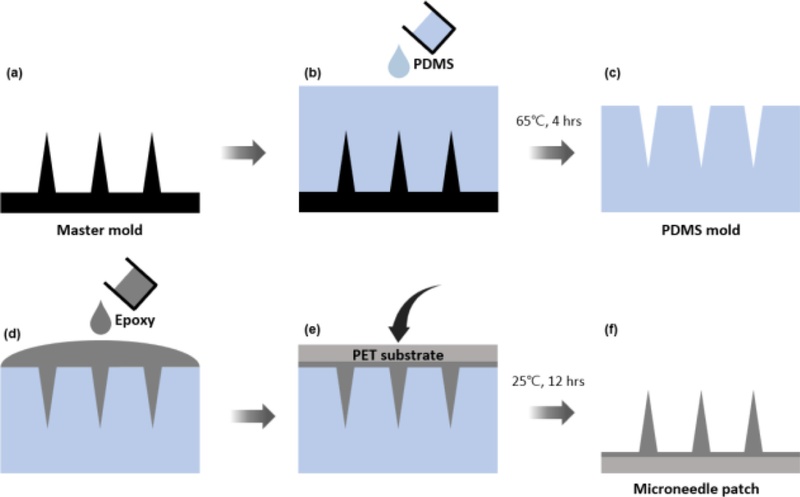

Fig. 2.

Microneedle patch fabrication process. (a) Fabrication of microneedle master mold using grayscale lithography. (b) Casting of PDMS to form negative replica of master mold. (c) Curing of PDMS inverse mold at 65°C for 4 h. (d) Pouring of medical epoxy into mold. (e) Lamination of PET substrate onto epoxy, followed by vacuum filling of medical epoxy into needle tip and curing at 25°C for 12 h. (f) Fabricated microneedle patch.

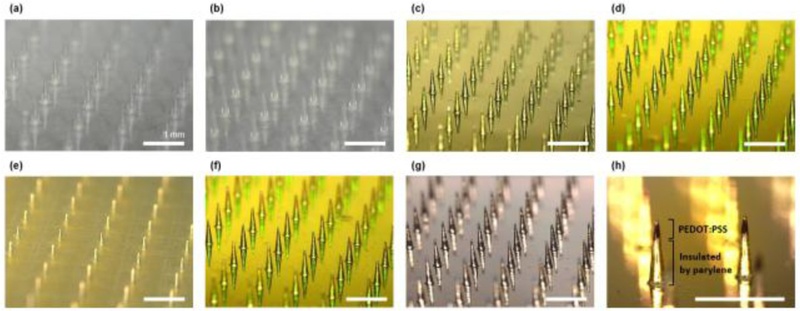

Fig. 3.

The sequential fabrication steps of microneedle electrodes. (a) Replication of epoxy microneedle patch via soft lithography. (b) Deposition of 500 nm parylene layer onto microneedle patch. (c) Deposition of gold layer to form conductive electrode. (d) Deposition of 500 nm parylene insulating layer. (e) Application of shadow mask to microneedle tips. (f) Etching of parylene layer at tips by oxygen plasma. (g) Electrodeposition of PEDOT:PSS onto microneedle tips. (h) inal fabricated microneedles. All scale bars, 1 mm.

To create microneedle (MN) scaffolds with controlled geometry, we first prepared grayscale-lithography master molds, replicated them in PDMS, and cast medical epoxy into the negative molds. After laminating a PET backing and curing (65°C, 4 h; then 25°C, 12 h), complete epoxy MN patches were obtained (Fig. 2). These patches served as the structural basis for the subsequent electrode integration.

Both the film and MN devices were built on the same parylene–Au–parylene stack. For the MN electrodes, the multilayers were conformally coated onto the epoxy needles, and a shadow mask and oxygen plasma exposed only the apex to act as the working contact, while the shaft remained insulated. PEDOT:PSS was finally deposited on the exposed tips to lower low-frequency impedance. The film electrodes were subjected to identical metallization/encapsulation steps on flat PET, ensuring that the sole variable was MN penetration (Fig. 3).

The mechanical robustness of the microneedle arrays was evaluated to ensure reliable skin penetration without structural failures (Fig. 4). Compression tests demonstrated that the individual microneedles withstood forces exceeding the minimum insertion threshold, confirming a sufficient safety margin for consistent penetration. The measured fracture force was several times higher than the estimated force required to breach the stratum corneum, indicating that the microneedles were mechanically stable under typical handling and application conditions.

Fig. 4.

Characterization of microneedle array structure and mechanical performance. (a) Optical microscopy image of microneedle array and (b) detailed view of individual microneedles. (c) The experimental setup for measuring the fracture force of the microneedles. (d) Force and frequency curve obtained during the compression test of a microneedle, demonstrating its mechanical strength. (e) Microscopic image of the surface of the human skin after the microneedles penetration. (f) Higher-magnification image showing micropores created by microneedles; arrows indicate micropores.

In parallel, penetration tests on the excised skin confirmed reproducible insertion with minimal deformation of the surrounding tissue. The microneedles created consistent microchannels that were maintained across repeated applications, thereby demonstrating the mechanical reliability of the array design. Importantly, no structural collapse or tip blunting was observed after multiple uses, supporting the durability of the parylene–Au–parylene coating during penetration.

These results establish that microneedles provide a mechanically robust yet minimally invasive interface capable of reproducible insertion into the skin barrier, while preserving structural integrity for long-term use.

The intrinsic electrical properties of the electrodes were characterized to confirm that the performance differences arose from the electrode–skin interface rather than the electrodes themselves (Fig. 5). Measurements of line resistance and contact resistance revealed values in the range of a few tens of ohms, with no significant differences between film and MN electrodes. This indicates that the conductive parylene-Au-parylene layers maintained stable electrical continuity, independent of the device configuration.

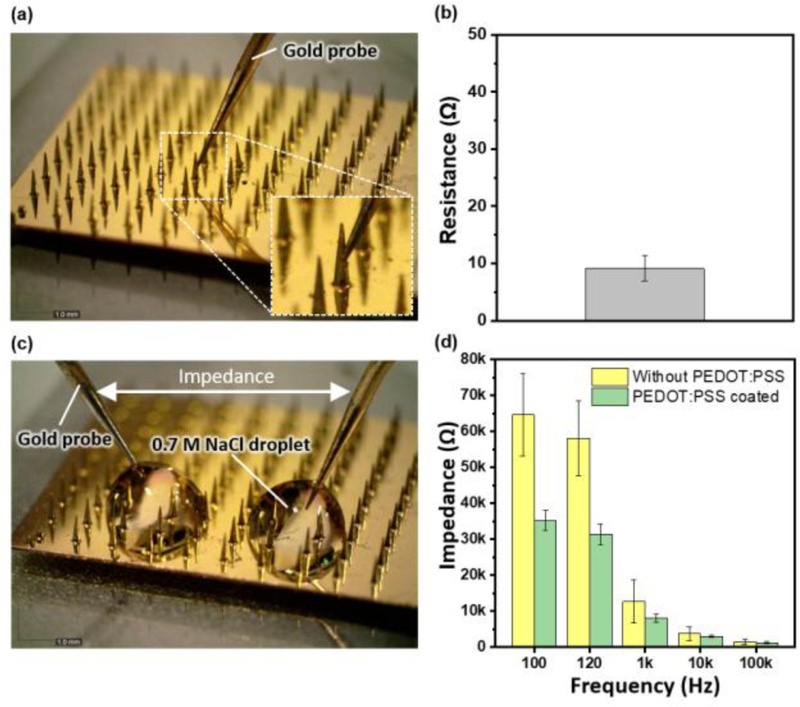

Fig. 5.

Electrical properties of microneedle electrodes. (a) Setup for measuring the resistance between the microneedle and the electrode wire and (b) the measured resistance. (c) Setup for impedance measurements of the microneedle electrodes and (d) the impedance spectra of the microneedle electrodes before and after PEDOT:PSS coating.

Electrochemical impedance spectroscopy (EIS) further demonstrated comparable characteristics when the electrodes were immersed in a saline environment. Both electrode types exhibited similar impedance spectra across the frequency range, confirming that the electrode materials and encapsulation provided equivalent intrinsic performances. The incorporation of conductive surface treatments, such as PEDOT:PSS coating, further reduced the low-frequency impedance but did not alter the relative equivalence between the film and the MN electrodes.

Together, these measurements established that the observed differences in the long-term biosignal quality cannot be attributed to variations in the electrode material or baseline electrical properties. Instead, the results highlighted the role of the SC barrier as the dominant factor in interface impedance during skin application, thereby isolating microneedle penetration as the key determinant of improved SNR in subsequent in vivo experiments.

To investigate how prolonged electrode attachment alters the skin barrier, histological sections were prepared from microneedle (MN) electrode sites and examined by hematoxylin and eosin (H&E) staining (Fig. 6). To ensure an accurate evaluation of the tissue response, the skin was sectioned along different planes relative to the microneedles, including the exact central axis of the needle shafts. Sectioning through the needle axis allowed direct visualization of the penetration depth and tissue interactions, providing a fair comparison across samples. On day 1, the SC appeared relatively thin and uniform, whereas on day 3, a clear thickening of the SC was observed under occlusive attachment. Beyond three days, no significant change in SC thickness was observed; and therefore three days was taken as the long-term condition for this study, and similar outcomes are expected for longer durations. Importantly, at the MN electrode sites, the microchannels created by needle insertion remained visible across the thickened SC, whereas deeper epidermal and dermal structures remained intact, confirming that penetration was confined to the barrier layer without tissue disruption.

Fig. 6.

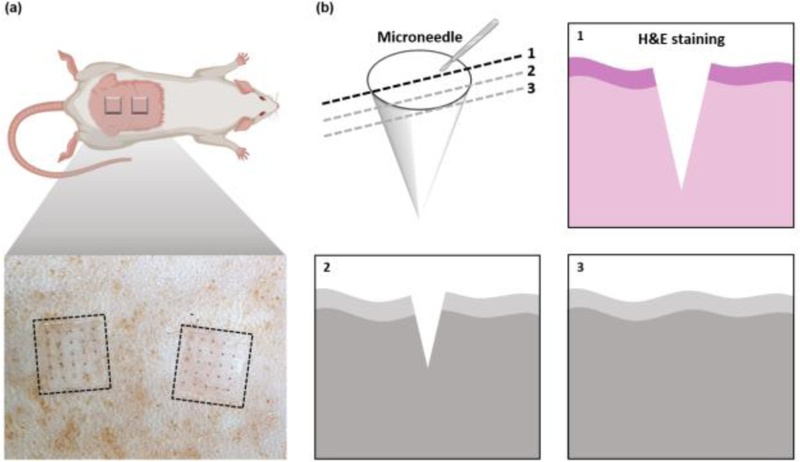

Preparation of skin sections for histological analysis of microneedle electrode sites. (a) Microneedle patches applied to the dorsal skin of a Sprague-Dawley (SD) rat. (b) Schematic representation of the cross-sectional views of rat skin at various locations. The sections were prepared by cutting the skin at various positions relative to the microneedle, including the exact center of the microneedle. The central section was then stained with Hematoxylin & Eosin (H&E) to visualize tissue morphology.

To quantify the effect of occlusion on the SC, we performed histological analysis of skin samples collected from animal models after repeated electrode attachment (Fig. 7). Hematoxylin and eosin (H&E)-stained sections were prepared along the microneedle axis, and the SC thickness was measured across multiple regions for consistent evaluation. Quantitative analysis confirmed that the SC thickness increased significantly from day 1 to day 3, regardless of whether film or MN electrodes were applied. This indicated that patch occlusion itself promoted corneocyte accumulation and barrier thickening. Although SC thickening is primarily driven by inhibited desquamation under occlusion, other secondary factors such as limited sweat drainage or mild local immune responses may further influence the remodeling process.

Fig. 7.

Histopathological analysis of SD rat skin in vivo after microneedle and film electrodes application. Microscopic images of hematoxylin and eosin (H&E)-stained tissue sections of rat skin (a) immediately after and (b) 2 days after microneedle electrode application, and (c) immediately after and (d) 2 days after film electrode application. Scale bar showing 100µm. (e) Measurement of stratum corneum thickness based on obtained images.

Importantly, despite this comparable increase in SC thickness, the MN electrodes maintained their conductive tips exposed in the upper dermis through the microchannels created by penetration. Thus, even as the SC thickened, the electrode–tissue interface of the MN devices remained functionally preserved, whereas the film electrodes were entirely subjected to the reinforced barrier. These results provide direct histological evidence that the divergence in long-term signal quality between MN and film electrodes arises not from differences in SC remodeling but from whether the electrode can bypass the thickened layer.

To further validate these histological findings in the human skin, we examined occlusion-induced changes directly at the electrode application sites. As shown in Fig. 8, both the film and MN patches promoted SC thickening after several days of wear; however, only the MN electrodes preserved the intradermal conduits, maintaining connectivity to viable tissue despite the thickened barrier.

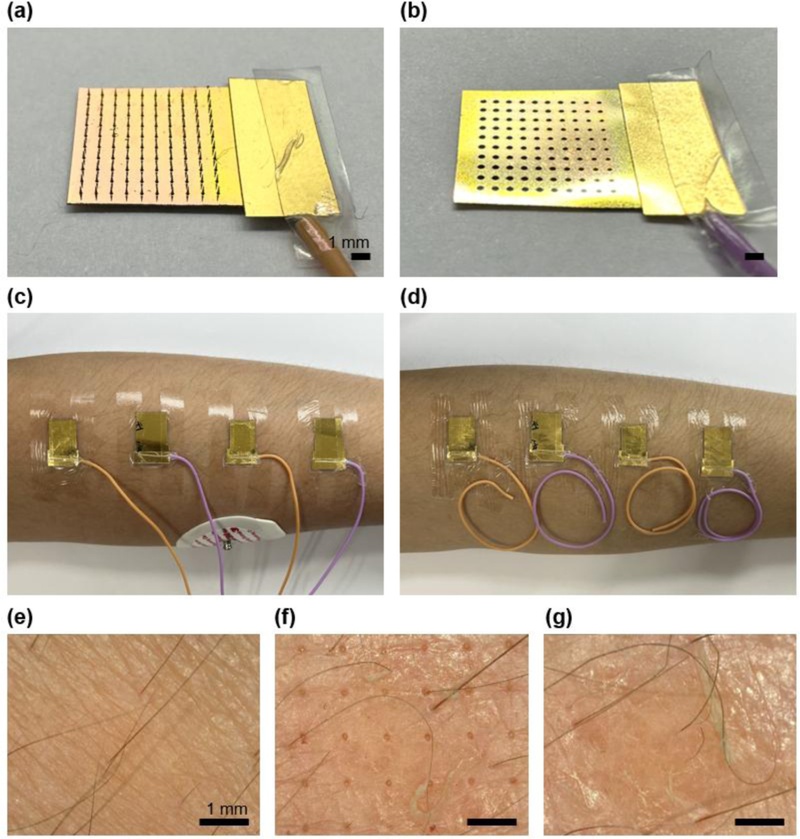

Fig. 8.

Experimental setup for EMG signal monitoring. (a) Microneedle electrodes and (b) film electrodes for EMG signal monitoring. (c) Right after applying the microneedle and film electrodes to a human forearm and (d) after 2 days of application. Microscopic images of (e) skin without electrode application, (f) skin with microneedle and (g) film electrode application after 2 days.

Next, we evaluated the performances of the film and MN electrodes in human subjects to confirm their applicability to real-time EMG monitoring (Fig. 8). Both electrode types were fabricated on the same parylene-Au-parylene platform and placed on the forearm flexor muscles in identical configurations. At the initial time point (day 1), both the film and MN electrodes successfully captured EMG signals with comparable waveform quality, indicating that the baseline coupling was effective regardless of the electrode type. Visual inspection of the electrode sites revealed no irritation or erythema, confirming the short-term biocompatibility. Notably, at the MN electrode sites, microscopic examination revealed the presence of minimal microchannels corresponding to needle penetration, whereas the surrounding skin remained intact. In contrast, film electrode sites exhibited accumulation of desquamating corneocytes after two days of occlusive attachment, consistent with the barrier remodeling observed in histological analysis. These results demonstrate that both electrode types are capable of safe and effective initial recordings; however, the MN interface provides a more stable pathway for long-term measurements by mitigating the effects of SC buildup.

Finally, we compared the long-term stability of EMG recordings obtained with film and MN electrodes over three days of continuous use (Fig. 9). On day 1, both electrode types recorded muscle activity with similar waveform amplitudes and clarity. By day 3, however, the film electrodes exhibited pronounced signal degradation with reduced amplitude and distorted waveforms, consistent with the increase in impedance caused by SC thickening. In contrast, the MN electrodes maintained waveforms with stable amplitudes and temporal features, demonstrating their resilience to barrier changes. Quantitative analysis of the signal-to-noise ratio (SNR) confirmed this divergence: film electrodes showed a substantial decline in the relative SNR, whereas MN electrodes retained nearly constant values throughout the measurement period. These findings directly validate the concept illustrated in Fig. 1, establishing that bypassing the SC barrier is a decisive factor for preserving high-fidelity EMG signals during long-term monitoring.

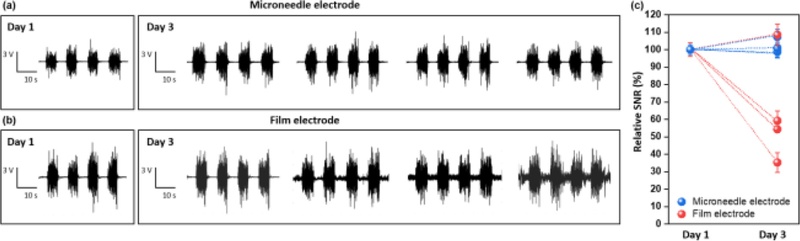

Fig. 9.

EMG signals from human subject via MN vs film electrodes. The EMG signals obtained from (a) microneedle electrodes and (b) film electrodes immediately after application (Day 1) and after 2 days (Day 3). (c) Relative signal-to-noise ratio (SNR) values for day 1 and day 3.

4. CONCLUSIONS

In this study, we provided direct evidence that continuous on-skin attachment remodels the stratum corneum (SC), producing progressive thickening that directly undermines performance of film-based electrodes. By combining histological visualization and quantitative analysis with in vivo EMG measurements, we demonstrated that barrier remodeling is the primary driver of long-term signal degradation in conventional epidermal electrodes.

Microneedle (MN) electrodes circumvent this barrier by penetrating the SC and maintaining stable intradermal channels, even after significant thickening. As a result, MN electrodes preserve a high signal-to-noise ratio (SNR) and waveform fidelity throughout extended EMG monitoring, in stark contrast to the decline observed with film electrodes.

These findings not only validate MN electrodes as a robust platform for reliable, long-term epidermal bioelectronics but also establish SC remodeling as a key mechanistic bottleneck for skin-mounted devices. Recognizing and addressing these dynamic barriers is essential for designing next-generation wearable clinical monitoring technologies. Future studies should also explore breathable or porous electrode architectures that can reduce occlusion-induced SC thickening by allowing limited vapor and sweat exchange, thus providing an alternative route to improve long-term skin compatibility.
