A Kinematic Consistency-Based Method for Refining Axial Twist Errors in Skeleton-Based Motion Data

1. INTRODUCTION

Optical motion capture is a technology that converts human motion into the spatiotemporal poses of a digital body model, and it is widely used not only in the film and animation industries but also in diverse application fields such as games [1], medical rehabilitation [2], and sports analysis [3]. These applications require a human skeleton model, which is constructed in optical motion capture by attaching reflective markers to the body and estimating their positions using infrared cameras. In fields that demand high precision, high-quality motion data that preserve the continuity of joint rotations and kinematic consistency are essential, and the hierarchical structure of the skeleton and joint rotation information serve as fundamental components for representing captured motion.

In marker-based optical motion capture, constructing a human skeleton model requires at least three markers per limb segment [4,5], which is the minimum number needed to determine the positions of the joints at both ends of the segment as well as its rotational information. However, in practical motion capture environments, markers are frequently occluded by surrounding objects or body parts, leading to data loss. When markers attached near both ends of a segment are occluded, joint information in that region may be missing, resulting in corrupted position and rotation data. Moreover, when auxiliary markers attached to the bone are occluded, errors can arise specifically in axial rotation information. Fig. 1 illustrates a representative example of an axial twist error, in which an unintended twist at the LeftForeArm joint transforms an otherwise normal posture (a) into the distorted arm orientation shown in (b). In addition to marker occlusion [6], motion data can be degraded by various factors such as system noise [7], mislabeling [8], and soft tissue artefacts (STA) caused by skin and muscle motion [9]. Many previous studies have focused on refining marker-based motion data by reconstructing occluded marker positions [6], filtering sensor noise [7], relabeling markers [8], or on generating natural motion during skeleton construction through physics-based inverse kinematics (IK) optimization [9].

Fig. 1.

Comparison of normal posture and axial twist error using a character model provided by Adobe Mixamo. (a) Normal posture, (b) Motion with an axial twist error.

However, when motion capture data are not directly acquired from a capture system, it is often the case that only skeleton-based motion data are available without access to the original marker information. In such situations, existing methods designed for refining marker-based motion data cannot be effectively applied. In particular, there has been no prior work that explicitly models the loss of rotational information about the bone’s longitudinal axis in skeleton models caused by occlusion of auxiliary markers. Furthermore, conventional physics-based IK optimization methods have inherent limitations in resolving axial rotational inconsistencies that occur along joint chains, often requiring manual intervention to remove visually unnatural motions.

To overcome these limitations, this study proposes a kinematic method that explicitly models constraints on axial rotation about the bone axis to automatically detect and refine twist errors in joint rotations. The proposed approach employs swing–twist decomposition to independently extract the twist component of the parent joint rotation about the parent–child axis. Simultaneously, the azimuthal change of the child joint about the same axis is estimated to analyze the directional consistency between the two rotations. By identifying kinematic contradictions based on mismatched rotational directions between the parent and child joints, the proposed algorithm detects erroneous segments. During refinement, the method is designed to preserve the continuity of the overall joint orientation, selectively correcting only the axial twist error component without introducing unnecessary pose distortions.

To the best of our knowledge, this study is the first to define and mathematically model axial twist errors by exploiting the kinematic consistency of joint chains in a skeleton-based motion data environment. Furthermore, by combining swing–twist decomposition with azimuthal rotation analysis, we propose a novel framework that effectively identifies and refines axial twist errors that are difficult to detect using conventional rotation analysis alone. The proposed method was validated on a large-scale benchmark dataset with synthetically injected errors, demonstrating its effectiveness in refining axial twist errors across a wide range of motions and joints. Quantitative results show that the proposed approach successfully removes axial twist errors and restores the original motion, and qualitative evaluation confirms that the refined motions align well with human visual intuition.

2. RELATED WORK

Optical motion capture data are susceptible to quality degradation due to various factors, including marker occlusion, incorrect marker labeling, and sensor noise. To address these issues, numerous studies over the past decades have focused on refining motion data either by reconstructing missing marker positions or by smoothing joint rotations in skeleton-based representations to improve overall motion quality. This section reviews existing approaches by categorizing them into interpolation and signal-processing methods, statistical modeling techniques, kinematic and physical constraint-based approaches, and recent learning-based methods. Their relevance to axial twist errors, which are the focus of this study, as well as their inherent limitations, are discussed.

3. PROPOSED METHOD

This section proposes a method for defining, detecting, and correcting axial twist errors in skeleton-based motion data. Section 3.1 defines axial twist errors at joints. Section 3.2 describes how axial twist components are extracted separately for parent and child joints, and Section 3.3 presents the procedure for detecting and refining twist errors by combining these components.

3.1 Definition of Twist Error

Skeleton-based motion data are represented as a kinematic model with a hierarchical parent–child joint structure. In particular, the global orientation of each joint is defined by the relative local rotation of a child joint J_C with respect to its parent joint J_P according to forward kinematics. Under normal motion, when a twist occurs at the parent joint about the bone axis aligned with the segment’s longitudinal direction, the child joint should rotate about the same axis, resulting in a corresponding change in pose in the global coordinate frame.

However, during motion capture, auxiliary markers used to determine rotational information may become occluded. When this occurs, rotational information about the segment’s longitudinal axis can be temporarily lost, leading to unintended twist values at the affected frame. In such cases, a sudden twist change is observed in the global orientation of the parent joint, which dictates the segment’s orientation, while the global orientations of the child joint and its downstream joints remain nearly unchanged. From a kinematic perspective, this implies that the local coordinate frame of the child joint has rotated in the opposite direction to cancel the parent’s twist. This results in adjacent joints twisting in opposite directions, a motion that is physically implausible given the human skeletal structure.

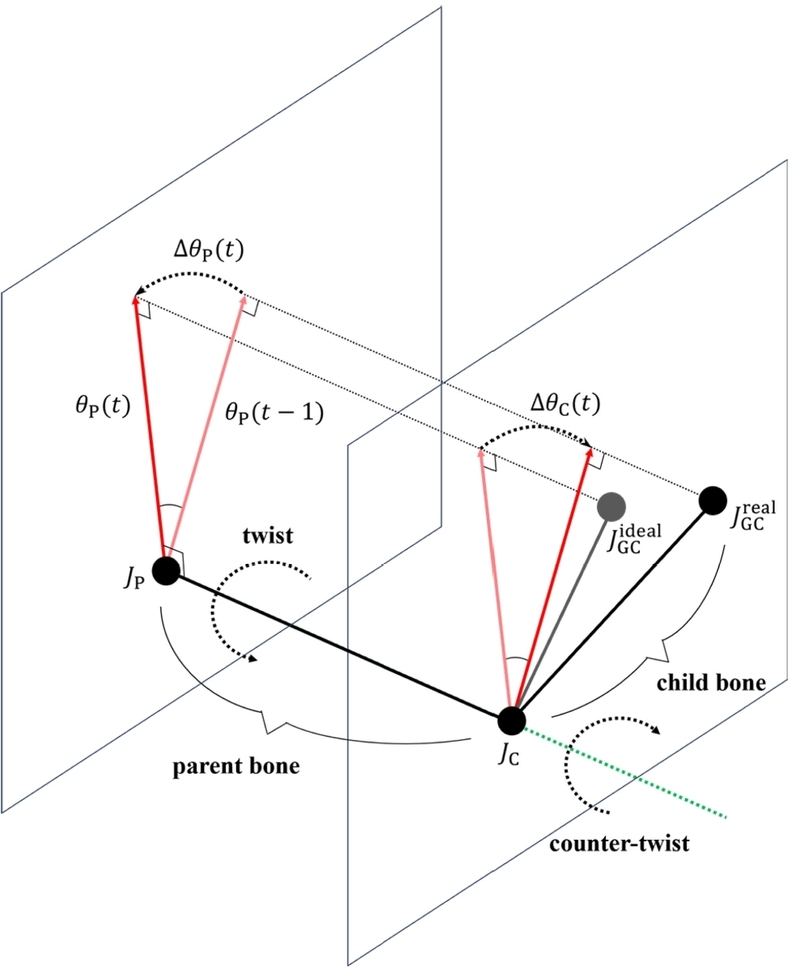

Fig. 2 illustrates a representative example of a twist error. If a normal axial rotation occurs at J_P about the parent–child axis, the child joint and the downstream grandchild joint J_GC should rotate together, placing the grandchild at its ideal position $$ J_{\mathrm{G}\mathrm{C}}^{\mathrm{i}\mathrm{d}\mathrm{e}\mathrm{a}\mathrm{l}}$$. In contrast, when a twist error occurs, a counter-rotation at J_C cancels the rotation of J_P, causing the actual grandchild position $$ J_{\mathrm{G}\mathrm{C}}^{\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{l}}$$ to remain unchanged.

Fig. 2.

Illustration of inverse axial twists between parent and child joints causing kinematic inconsistency.

In this study, such behavior is defined as an axial twist error and is mathematically expressed as:

(1)

where Δθ_P(t) and Δθ_C(t) denote the frame-to-frame twist variations of the parent joint J_P and the child joint J_C, respectively, measured about the parent–child axis.

3.2 Extraction of Axial Twist Components at Each Joint

To quantitatively identify twist errors, twist components must be extracted independently from the parent and child joints. This section describes the extraction methods applied to each joint.

3.2.1 Twist Component Extraction at the Parent Joint

The twist component at the parent joint is defined with respect to the bone axis connecting the parent and child joints. To separate this component, quaternion-based swing–twist decomposition is employed.

Swing–twist decomposition [21] separates a rotation into a swing component, which is orthogonal to the axis, and a twist component, which rotates about the axis. The local rotation of the parent joint is represented by a quaternion q_P, and the unit vector a pointing from the parent to the child joint is defined as the twist axis. The quaternion q_P is decomposed into a swing component q_swing and a twist component q_twist, as expressed in:

$\[ q_{\mathrm{P}}=q_{\mathrm{s}\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{g}}{q}_{\mathrm{t}\mathrm{w}\mathrm{i}\mathrm{s}\mathrm{t}} \]$

(2)

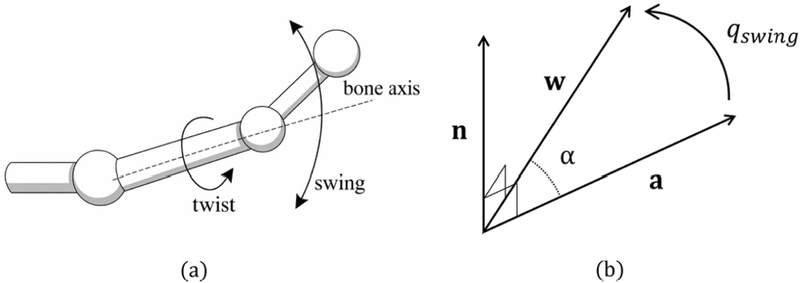

The twist component is computed using the direct method. As illustrated in Fig. 3, when the parent rotation quaternion q_P rotates the initial vector a to

Fig. 3.

Swing–twist decomposition about the bone axis. (a) swing and twist components, (b) geometric construction for computing qswing.

$\[ \mathbf{w}=q\mathbf{a}{q}^{-1} \]$

(3)

the swing quaternion q_swing is defined as the minimum-angle rotation that maps a to w. The rotation axis of the swing is given by

$\[ \mathbf{n}=\frac{\mathbf{a}\times \mathbf{w}}{\Vert \mathbf{a}\times \mathbf{w}\Vert } \]$

(4)

and the angle between the two vectors is

$\[ \mathrm{c}\mathrm{o}\mathrm{s}\alpha =\mathbf{a}\cdot \mathbf{w} \]$

(5)

Using these quantities, the swing component is computed as

$\[ q_{\mathrm{s}\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{g}}=\mathrm{c}\mathrm{o}\mathrm{s}\left(\frac{\alpha }{2}\right)+\mathrm{s}\mathrm{i}\mathrm{n}\left(\frac{\alpha }{2}\right)\mathbf{n} \]$

(6)

Accordingly, the twist component of the parent rotation is obtained by explicitly removing the swing component from the original rotation:

$\[ q_{\mathrm{t}\mathrm{w}\mathrm{i}\mathrm{s}\mathrm{t}}=q_{\mathrm{P}}{q}_{\mathrm{s}\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{g}}^{-1} \]$

(7)

The twist angle about axis a is then computed from the twist quaternion via quaternion-to-angle conversion:

$\[ {\theta }_{\mathrm{P}}=2\mathrm{a}\mathrm{t}\mathrm{a}\mathrm{n}2\left(\Vert {\left(q_{\mathrm{t}\mathrm{w}\mathrm{i}\mathrm{s}\mathrm{t}}\right)}_v\Vert ,{\left(q_{\mathrm{t}\mathrm{w}\mathrm{i}\mathrm{s}\mathrm{t}}\right)}_w\right) \]$

(8)

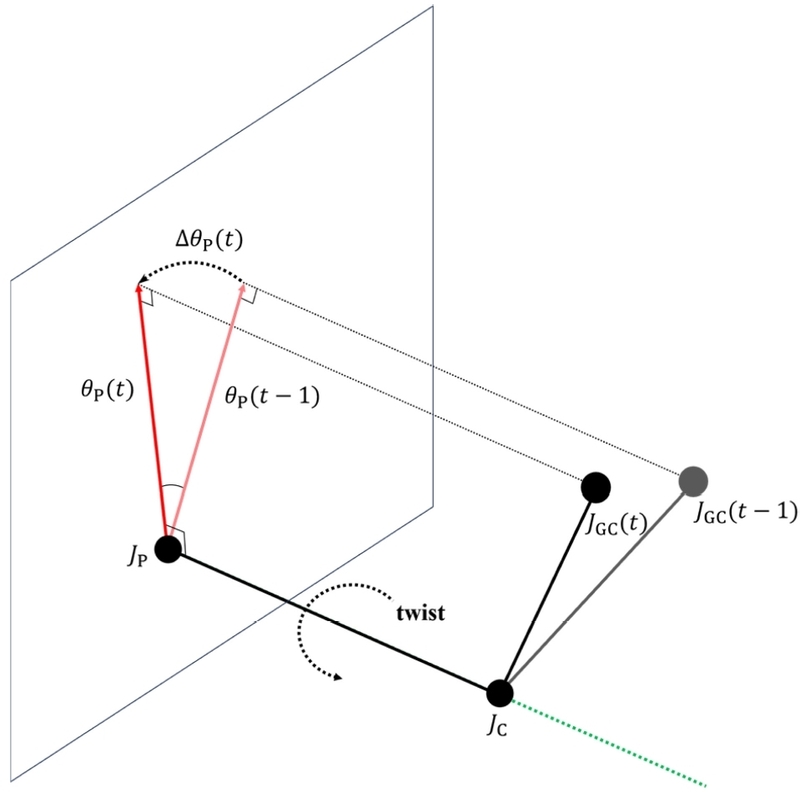

As shown in Fig. 4, θ_P represents the pure axial rotation about a. Finally, the frame-to-frame twist variation at the parent joint is computed as

$\[ \mathrm{\Delta }{\theta }_{\mathrm{p}}\left(t\right)={\theta }_{\mathrm{p}}\left(t\right)-{\theta }_{\mathrm{p}}\left(t-1\right) \]$

(9)

Fig. 4.

Extraction of the axial twist component at the parent joint using swing-twist decomposition.

3.2.2 Twist Component Estimation at the Child Joint

For the child joint, it is difficult to directly extract the twist about the parent–child axis using swing–twist decomposition on its local rotation. Therefore, this study estimates the child joint’s twist using an alternative approach.

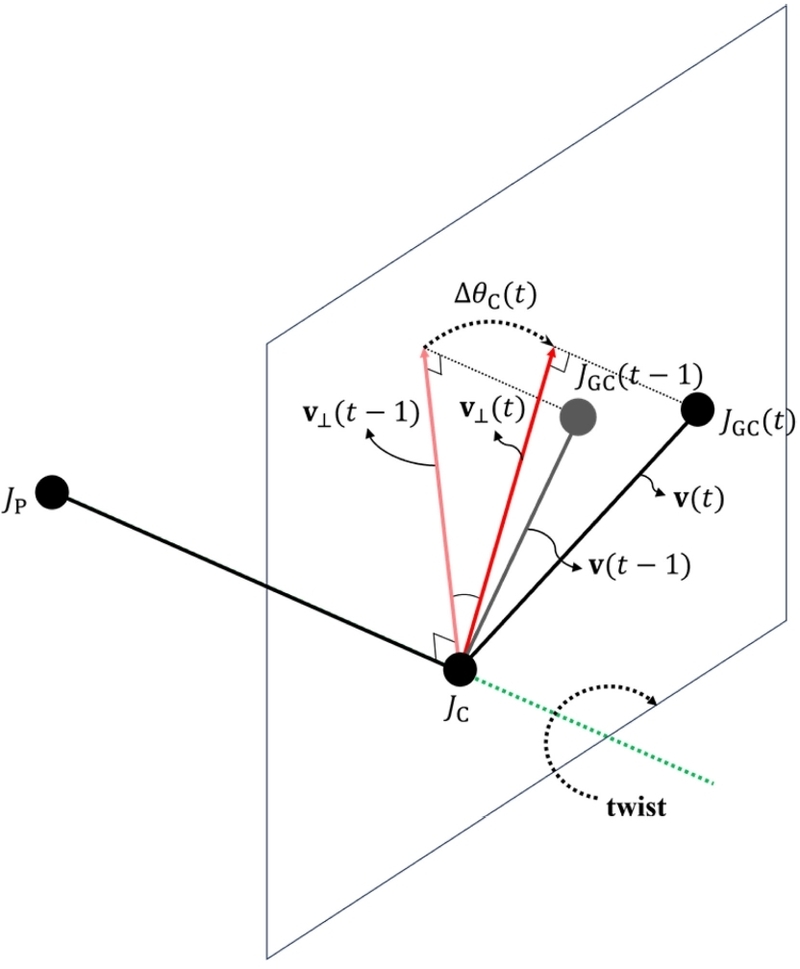

First, the child–grandchild vector is calculated in the parent joint’s coordinate frame, as shown in Fig. 5:

$\[ \mathbf{v}\left(t\right)={\mathbf{R}}_{\mathrm{C}}\left(t\right){\mathbf{b}}_{\mathrm{G}\mathrm{C}} \]$

(10)

Fig. 5.

Estimation of the child joint twist via azimuth variation of the child-grandchild vector.

Where R_C(t) is the rotation matrix of the child joint, and b_GC is the offset vector from the child joint to the grandchild joint. The vector v(t) is then projected onto the plane orthogonal to the parent–child axis, and the temporal variation of the azimuth angle of the projected vector is used to estimate the twist component of the child joint.

$\[ {\mathbf{v}}_{\perp }\left(t\right)=\mathbf{v}\left(t\right)-\left(\mathbf{v}\left(t\right)\cdot \mathbf{a}\right)\mathbf{a} \]$

(11)

$\[ {\theta }_{\mathrm{C}}\left(t\right)=\mathrm{a}\mathrm{t}\mathrm{a}\mathrm{n}2\left(\left({\mathbf{v}}_{\perp }(t-1)\times {\mathbf{v}}_{\perp }\left(t\right)\right)\cdot \mathbf{a},{\mathbf{v}}_{\perp }(t-1)\cdot {\mathbf{v}}_{\perp }\left(t\right)\right) \]$

(12)

4. EXPERIMENTS AND RESULTS

This section quantitatively evaluates the performance of the proposed skeleton-based twist error detection and refinement method. The experiments were conducted by injecting synthetic twist errors into normal motion data with known ground truth, restoring the corrupted data using the proposed algorithm, and quantitatively comparing the refined results with the original motions.

4.2 Experimental Results

4.2.1 Quantitative Performance Evaluation

To evaluate the refinement performance of the algorithm, the Mean Absolute Error (MAE) and Root Mean Square Error (RMSE) of joint rotation angles were measured before and after refinement. In addition, the Frame Success Rate (FSR) was introduced to assess the reliability of the algorithm. FSR is defined as the proportion of frames with twist errors in which the absolute rotation error was reduced by at least 80%.

When the proposed algorithm was applied to the entire synthetic dataset, the overall average refinement performance is summarized in Table 1. Out of a total of 335,004 error frames, 317,611 frames were successfully refined, corresponding to an FSR of approximately 94.81%, indicating that twist errors were effectively removed in most frames. Furthermore, the average MAE was significantly reduced from 124.61° before refinement to 8.91° after applying the proposed method, while the RMSE decreased from 160.28° to 39.96°. These results indicate that 92.85% of the initially injected errors were effectively removed, demonstrating that the proposed method robustly corrects twist errors using only the kinematic information of the skeleton, without requiring marker data.

Table 1.

Overall quantitative performance of twist error refinement

4.2.2 Joint-wise Performance Analysis

To analyze variations in refinement performance according to joint kinematic characteristics, the Residual Error Ratio (RER) and Frame Success Rate (FSR) were computed individually for each joint.

As shown in Table 2 and Fig. 6, the ForeArm, Leg, and Shoulder joints achieved very high FSR values exceeding 98%, with RER values of approximately 1–2%, indicating near-perfect restoration performance. The Arm joint, which has a relatively wide range of motion, also demonstrated stable performance with success rates of approximately 92–96%. In contrast, the UpLeg joint exhibited a relatively lower FSR of around 80% and an RER exceeding 20%. This behavior can be attributed to the fact that during motions such as leg extension, the child–grandchild vector becomes nearly aligned with the parent–child axis, causing azimuth estimation to become unstable more frequently than in other joints. Nevertheless, the achievement of success rates exceeding 90% for most major joints, excluding these singular cases, strongly supports the effectiveness of the proposed method.

Table 2.

Detailed performance metrics across limb segments

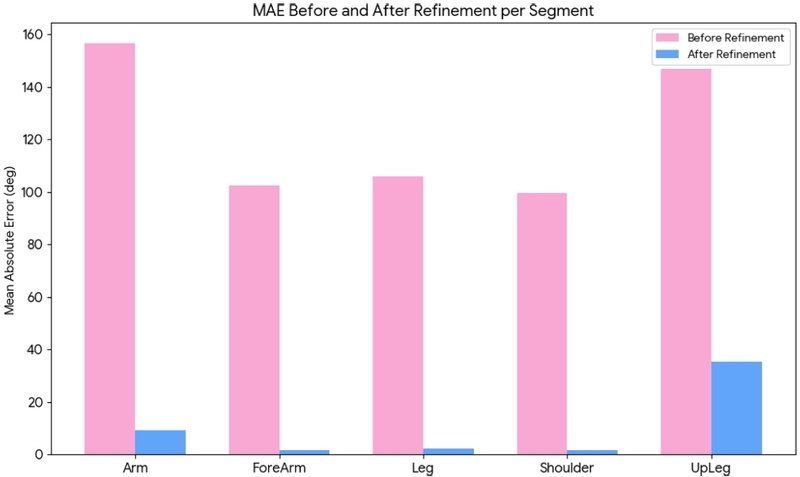

Fig. 6.

Comparison of Mean Absolute Error (MAE) before and after the proposed refinement for each limb segment.

4.2.3 Discussion

The proposed method effectively detected and refined both abrupt spike-type distortions and discontinuous level-shift intervals caused by twist errors. In particular, by selectively removing only local axial rotation errors while preserving the overall motion trajectory, the method successfully restored the original motion without introducing the information loss or phase lag typically introduced by low-pass filtering approaches, especially in fast movements.

However, to further improve robustness near kinematic singularities—such as configurations in which the parent–child–grandchild joints become collinear—future work will be required. Potential directions include incorporating additional auxiliary indicators beyond azimuth estimation or enhancing exception-handling strategies near singular configurations.

5. CONCLUSION

This study analyzed kinematic inconsistencies that arise in skeleton-based motion data and proposed a novel framework for defining, automatically detecting, and correcting twist errors. The proposed method combines swing–twist decomposition with azimuth estimation to characterize the relationship between axial rotations of the parent joint about the bone axis and corresponding inverse rotations of the child joint, enabling the detection of abnormal twist behavior at individual joints.

The significance of this work lies in explicitly modeling anomalous phenomena in motion capture data as single-joint axial twist errors defined with respect to the bone axis and establishing a kinematic framework to resolve them. In particular, the proposed approach overcomes the limitations of conventional signal processing-based methods, such as low-pass filtering, which rely on frequency characteristics and therefore tend to either suppress meaningful high-frequency motion components or fail to detect low-frequency drift errors. By directly identifying structural kinematic contradictions between joints, the proposed method selectively removes only erroneous twist components regardless of their temporal duration or frequency characteristics, while preserving the dynamic properties and overall global pose of the original motion through kinematic correction.

Experimental results demonstrate that the proposed method achieves an overall FSR of 94.81%, with success rates exceeding 96% for major joints such as the arms and legs. Nevertheless, limitations were observed in cases where the parent–child axis and the child–grandchild axis approach collinearity, as in thigh segments, which leads to reduced accuracy in azimuth estimation. Future work will focus on improving robustness in such kinematic singular configurations by introducing multi-chain kinematic constraints that incorporate information from adjacent joints or by integrating learning-based estimation models to further enhance the algorithm’s robustness.

In conclusion, the kinematic refinement algorithm proposed in this study serves as an effective post-processing method for improving the reliability of skeleton-based motion data and contributes to enhanced data quality in computer graphics and animation applications. Furthermore, the kinematic consistency-based detection logic established in this work can be extended to serve as physical constraints or loss functions in deep learning-based motion generation and reconstruction models, with the potential to improve kinematic integrity across a wide range of application domains.
