Porous Silicon Photonic Particles for Optical Monitoring of Drug Release

2.1 Fabrication of DBR Porous Silicon

DBR PSi was prepared by electrochemical etching of highly doped p⁺⁺-type silicon wafers (boron-doped, polished on the (100) face, resistivity of 0.8–1.2 mΩ·cm; Siltronix, Inc.). The etching was conducted in a Teflon cell using a two-electrode configuration with a platinum mesh counter electrode under dark conditions. The etching solution was a 3:1 (v/v) mixture of 48% aqueous hydrofluoric acid and absolute ethanol (both ACS reagent grade, Aldrich Chemicals). To fabricate the one-dimensional DBR photonic structure, galvanostatic etching was performed using a periodic pseudo-square-wave current. Current densities of 50 mA·cm^-2 for 0.5 s and 5 mA·cm^-2 for 4 s were alternately applied for 20 cycles. This periodic modulation generated alternating porous layers with distinct porosities and effective refractive indices. Subsequently, the DBR PSi film was detached from the silicon substrate via electropolishing. A current density of 460 mA·cm^-2 was applied for 100 s in the same 3:1 (v/v) HF/ethanol solution, followed by 29 mA·cm^-2 for 200 s in a diluted 1:15 (v/v) HF/ethanol mixture. The resulting free-standing DBR PSi films were rinsed several times with ethanol and dried under an argon atmosphere.

2.2 Thermal Oxidation of DBR PSi

The free-standing DBR PSi films were thermally oxidized in a furnace (Thermolyne F6270-26 equipped with a temperature controller). The temperature was increased from ambient temperature to 300°C at a ramp rate of 5°C·min^-1, maintained at 300°C for 3 h, and then allowed to cool passively to ambient temperature. The resulting oxidized PSi films retained the porous photonic structure and were subsequently used for CPT functionalization. Surface chemical changes induced by thermal oxidation were characterized by FT-IR spectroscopy.

2.3 Functionalization with CPT

CPT (17.4 mg, 0.05 mmol; Aldrich Chemicals) was dissolved in 10 mL of methylene chloride, and the solution was stirred for 30 min. Subsequently, 4-(dimethylamino) pyridine (DMAP, 0.1 mmol; Aldrich Chemicals) was added, and the reaction mixture was stirred at room temperature for 1 h. The resulting solution was added to the thermally oxidized PSi films, which were incubated in the reaction solution for 72 h. After functionalization, the films were sequentially rinsed with toluene, acetone, and methylene chloride to remove residual reagents and unreacted species, and subsequently dried under a stream of nitrogen. The resulting samples are hereafter referred to as CPT-functionalized oxidized PSi.

2.4 Preparation of Porous Silicon Photonic Particles

The CPT-functionalized oxidized PSi films were ultrasonically fragmented in ethanol for 30 min using an ultrasonic bath operated at 70 W and 40 kHz. The resulting porous silicon photonic particles were collected, dried under an inert atmosphere, and subsequently used for CPT release and optical monitoring experiments while retaining the porous photonic characteristics of the parent DBR structure.

2.5 Characterization

Surface chemical changes during oxidation and CPT functionalization were characterized by Fourier-transform infrared spectroscopy (FT-IR, Nicolet 5700) in diffuse reflectance mode using a Spectra-Tech diffuse reflectance attachment. The morphology of the CPT-functionalized oxidized PSi photonic particles was examined by cold field-emission scanning electron microscopy (FE-SEM, S-4700, Hitachi). Optical reflectivity spectra were measured using a tungsten-halogen light source coupled to a CCD spectrometer (S2000, Ocean Optics). The characteristic DBR reflection band was monitored to evaluate changes in the optical properties of the photonic particles during CPT release.

2.6 CPT Release and Optical Monitoring

CPT release from the CPT-functionalized PSi photonic particles was investigated over 12 h at room temperature in a quartz cuvette containing 3 mL of 1× phosphate-buffered saline (PBS, pH 7.4; 137 mM NaCl, 2.7 mM KCl, and approximately 10 mM phosphate). For each experiment, photonic particles obtained from a sigle CPT-functionalized DBR PSi film (approximately 1 cm in diameter and 20 μm in thickness) were used. CPT release was monitored directly in the same quartz cuvette by measuring the absorbance at 369 nm using a UV–vis spectrometer at 1 h intervals, without withdrawing aliquots from the release medium. Optical reflectivity spectra were also recorded at 1 h intervals to monitor changes in the photonic response during CPT release. The reflection wavelength and normalized reflectivity intensity were analyzed as a function of release time. To resolve subtle spectral variations that were not readily distinguishable in the original reflectivity spectra, the time-dependent spectra were converted into differential signals relative to the initial spectrum.

3.1 Fabrication and Structural Characterization of DBR Porous Silicon

Fig. 1. schematically illustrates the fabrication of CPT-functionalized oxidized PSi photonic particles. The DBR PSi structure was first formed on a highly doped p++-type Si substrate by periodic electrochemical etching. Alternating current densities generated porous layers with different porosities and refractive indices, producing a one-dimensional DBR structure with characteristic photonic properties. The resulting DBR PSi film was subsequently detached from the Si substrate by electropolishing to obtain a free-standing photonic film. The free-standing DBR PSi film was thermally oxidized to improve its chemical stability while preserving the porous structure. The oxidized DBR PSi was then functionalized with CPT, allowing CPT molecules to be incorporated within the porous framework. Finally, the CPT-functionalized film was fragmented by sonication to produce oxidized PSi photonic particles. The porous architecture provides a large internal surface for CPT functionalization, while the retained DBR structure enables changes occurring within the pores during CPT release to be transduced into an optical response. Thus, the prepared photonic particles provide a porous platform that integrates CPT functionalization and release with an intrinsic optical readout capability.

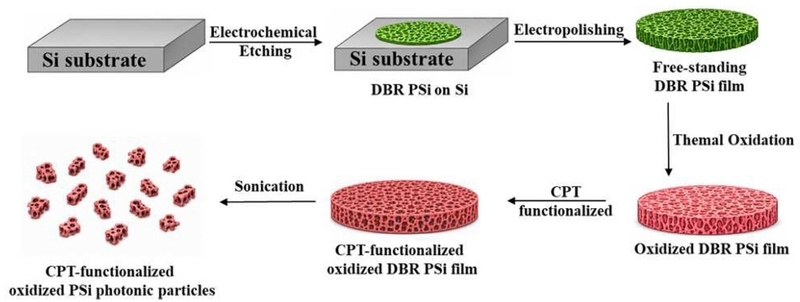

Fig. 1.

Schematic illustration of the fabrication of CPT-functionalized oxidized porous silicon photonic particles. DBR PSi was prepared by electrochemical etching, detached from the Si substrate by electropolishing, thermally oxidized, functionalized with CPT, and subsequently fragmented by sonication to form photonic particles.

The morphology of the fabricated DBR PSi was examined by FE-SEM, as shown in Fig. 2. The cross-sectional image (Fig. 2(a)) reveals a well-defined multilayer structure extending throughout the PSi film. The periodic contrast observed along the depth direction is attributed to alternating porous layers formed by the periodic modulation of current density during electrochemical etching. This regular layered morphology confirms the successful formation of the DBR structure, in which variations in porosity produce alternating effective refractive indices required for the characteristic photonic response. The surface image (Fig. 2(b)) shows a highly porous and interconnected morphology with nanoscale pores distributed across the PSi surface. Such a porous framework provides a large accessible surface area and internal pore volume for subsequent surface oxidation and CPT functionalization. More importantly, molecules incorporated into or released from these pores can alter the effective refractive index of the porous medium. Therefore, the combination of the periodic multilayer architecture and the accessible porous network provides the structural basis for converting changes associated with CPT release into variations in the optical reflection response. Overall, the SEM observations demonstrate that the electrochemical etching process successfully produced DBR PSi with both a periodically modulated multilayer structure and a highly porous surface morphology. These structural characteristics are essential for the subsequent preparation of oxidized PSi photonic particles and their application in optical monitoring of drug release.

Fig. 2.

FE-SEM images of DBR porous silicon. (a) cross-sectional morphology showing the periodic multilayer structure, (b) surface morphology showing the porous network, (c) particle distribution after ultrasonic fragmentation, and (d) representative morphology of the fragmented photonic particles.

Following ultrasonic fragmentation, the freestanding CPT-functionalized DBR PSi films were converted into irregularly shaped photonic particles, as shown in Fig. 2(c) and (d). The particle-distribution image (Fig. 2(c)) shows a heterogeneous population of plate-like fragments with lateral dimensions predominantly in the micrometer range, while the representative particle morphology (Fig. 2(d)) shows the presence of smaller fragments within the micrometer-scale population. The broad size distribution is consistent with the mechanical fragmentation of freestanding porous films during ultrasonication. The fragmented particles retain morphological features derived from the porous parent DBR film, supporting their subsequent use in CPT release and optical monitoring experiments. The micrometer-scale and heterogeneous particle size suggests that the present system is more appropriately considered a proof-of-concept platform for localized drug release and optical monitoring rather than a size-controlled carrier for systemic delivery. Further optimization of the fragmentation and size-selection processes would be required for biomedical applications in which a narrowly defined particle size is important.

3.2 Surface Modification and CPT Functionalization

The successive surface modification of DBR PSi was characterized by diffuse-reflectance FT-IR spectroscopy, as shown in Fig. 3. Freshly etched DBR PSi exhibited characteristic Si–H-related absorption bands, including a stretching vibration near 2100 cm^-1 and a bending vibration around 900 cm^-1, consistent with the hydrogen-terminated surface of electrochemically etched PSi. Following thermal oxidation, the intensity of the Si–H-related bands decreased substantially, while a strong and broad Si–O–Si absorption band developed in the 1000–1250 cm^-1 region. Additional oxygen-back-bonded silicon hydride features were observed around 2300 and 850 cm^-1. These spectral changes indicate the formation of an oxidized surface while retaining the porous DBR framework.

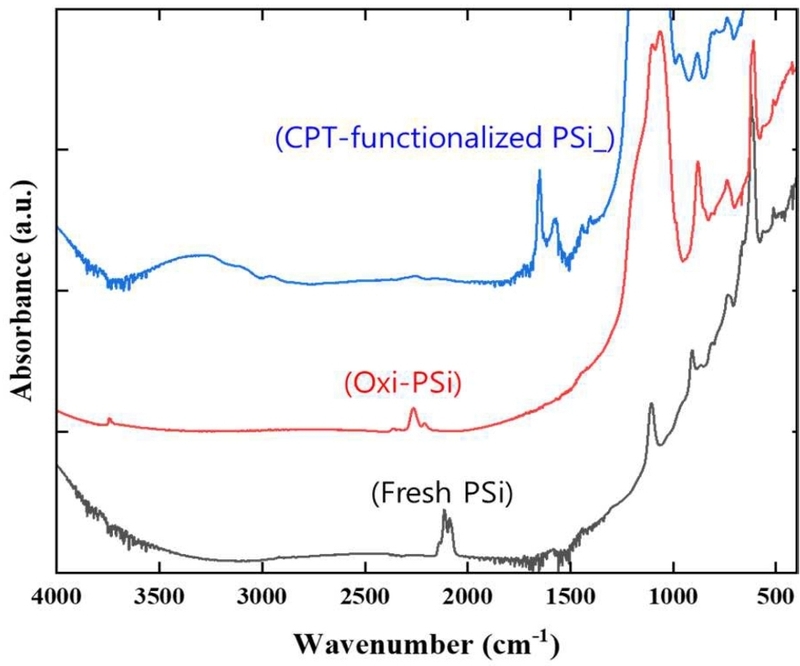

Fig. 3.

FT-IR spectra of DBR porous silicon at different stages of surface modification: freshly etched DBR PSi, thermally oxidized DBR PSi, and CPT-functionalized oxidized DBR PSi

Following CPT functionalization, additional absorption features were observed in the 1500–1700 cm^-1 region compared with those of oxidized DBR PSi. In particular, the features around 1650 and 1570 cm^-1 are consistent with vibrational modes associated with CPT, supporting the presence of CPT on the oxidized PSi surface. Together with the pronounced Si–O–Si absorption of the oxidized sample, these changes demonstrate the successive modification of DBR PSi from the freshly etched state to oxidized DBR PSi and subsequently to CPT-functionalized oxidized DBR PSi.

3.3 Optical Response during CPT Release

The optical response of the CPT-functionalized oxidized PSi photonic particles was monitored during CPT release. Fig. 4 shows the time-dependent reflectivity spectra recorded over 12 h. As the release proceeded, the reflection band gradually shifted toward shorter wavelengths, accompanied by a progressive decrease in reflectivity intensity. The blue shift is consistent with a reduction in the effective refractive index of the porous matrix as CPT is released from the pores and surface of the oxidized PSi photonic particles. Despite these spectral changes, the characteristic reflection band remained distinguishable throughout the measurement period, suggesting that the photonic characteristics of the DBR structure were largely retained during CPT release.

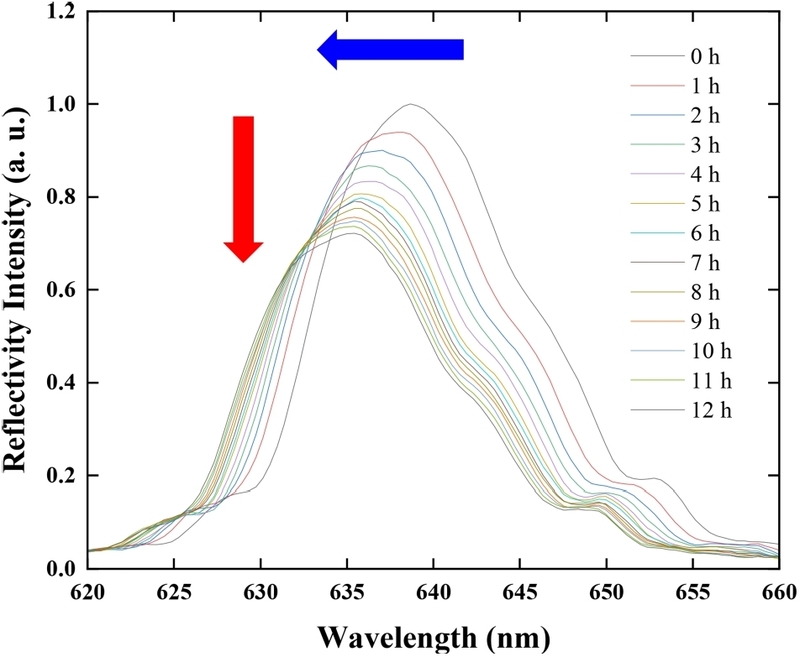

Fig. 4.

Time-dependent reflectivity spectra of CPT-functionalized oxidized PSi photonic particles during CPT release over 12 h, showing a progressive blue shift and decrease in reflectivity intensity.

3.4 Differential Spectral Analysis and Optical Monitoring of CPT Release

Although the time-dependent reflectivity spectra showed a gradual blue shift during CPT release, the magnitude of the spectral displacement was relatively small. Therefore, direct comparison of the reflectivity spectra, particularly during the early stage of release, did not clearly reveal the small wavelength change. To more clearly distinguish these subtle spectral variations, differential spectral analysis was applied using the initial reflectivity spectrum as a reference. Fig. 5(a) compares the reflectivity spectra measured at 0 and 1 h. The two reflection bands largely overlap, indicating that the spectral change during the initial stage of CPT release is relatively small. However, subtraction of the two spectra produces a distinct differential response, as shown in Fig. 5(c). The characteristic positive and negative features in the differential spectrum arise from the displacement of the reflection band and therefore provide a more readily distinguishable representation of the small wavelength shift than direct comparison of the original spectra. A more pronounced change was observed after 12 h of release. As shown in Fig. 5(b), the reflection band exhibited a clearer blue shift together with a decrease in reflectivity intensity compared with the initial spectrum. Correspondingly, the differential spectrum in Fig. 5(d) showed a larger response than that observed at 1 h. This increase in the differential response is consistent with the progressive change in the optical properties of the porous structure during CPT release. These results indicate that differential spectral analysis provides a useful means of highlighting small release-induced changes in the DBR reflection band. In particular, the differential representation allows subtle spectral displacement to be distinguished even when the original reflection bands substantially overlap. The differential response therefore complements direct analysis of the reflection wavelength and intensity for monitoring the optical changes associated with CPT release.

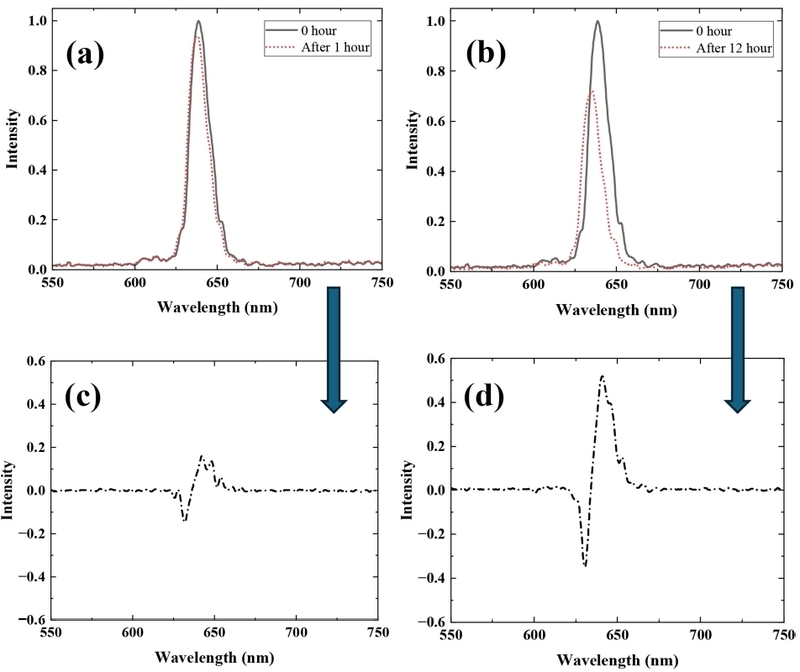

Fig. 5.

Reflectivity spectra and corresponding differential responses of CPT-functionalized oxidized PSi photonic particles during CPT release. (a) reflectivity spectra at 0 and 1 h, (b) reflectivity spectra at 0 and 12 h, (c) differential spectrum obtained from the 0 and 1 h spectra, and (d) differential spectrum obtained from the 0 and 12 h spectra.

The relationship between CPT release and the optical response of the oxidized PSi photonic particles is shown in Fig. 6. The cumulative percentage of released CPT increased rapidly during the initial and intermediate stages of the experiment and gradually approached a plateau toward 12 h. In contrast, the normalized reflectivity intensity decreased continuously with increasing release time. The opposing trends demonstrate that the optical response of the oxidized PSi photonic particles evolves concurrently with CPT release. The relatively rapid optical change during the early release period followed by a progressively slower response is also consistent with the temporal release profile. The decrease in reflectivity intensity and the blue shift of the reflection band provide complementary information on the release process. The wavelength shift reflects changes in the effective refractive index within the porous photonic structure, whereas the intensity variation provides an additional measure of the evolving optical characteristics of the particles. Together with the differential spectral response, these results demonstrate that CPT release can be monitored through changes in the intrinsic photonic response of the oxidized PSi photonic particles. Overall, the results demonstrate that CPT-functionalized oxidized PSi photonic particles retain their characteristic photonic response during drug release. CPT release induces a systematic blue shift and decrease in reflectivity intensity, while differential spectral analysis enables subtle spectral changes to be more clearly resolved. The corresponding changes in CPT release and optical response indicate that the photonic particles can serve not only as drug carriers but also as optically readable materials for monitoring the release process. These characteristics demonstrate the potential of oxidized PSi photonic particles as a platform integrating drug delivery with intrinsic optical monitoring.

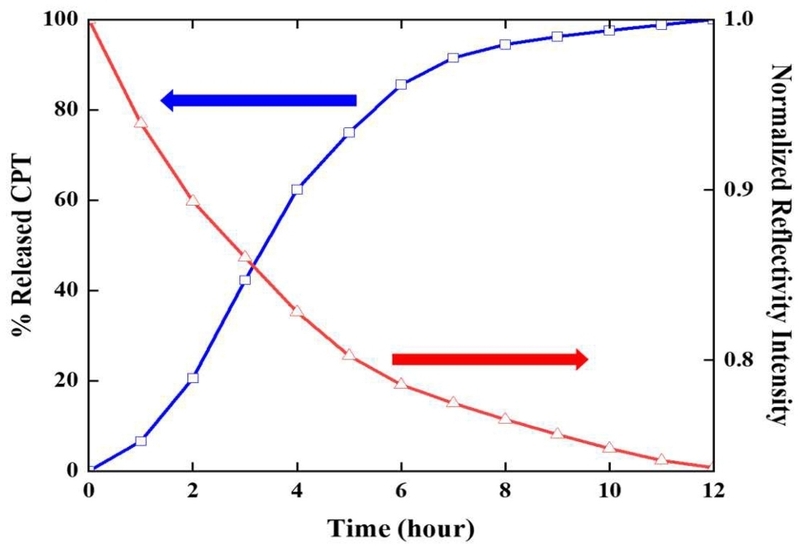

Fig. 6.

Time-dependent changes in cumulative CPT release and normalized reflectivity intensity of CPT-functionalized oxidized PSi photonic particles.

The intrinsic optical response of DBR PSi photonic particles offers a potential self-reporting strategy for monitoring drug release without the need for additional fluorescent labels or separate sensing components. Porous silicon has been widely investigated as a drug-delivery material because its porous structure, surface chemistry, and optical properties can be tailored for molecular loading, release, and monitoring [6]. In particular, porous silicon photonic crystals have been investigated as potential self-reporting platforms for localized biomedical applications, including intraocular drug delivery [18]. More recently, self-reporting porous silicon microparticles have also been demonstrated, in which intrinsic optical signals were correlated with payload release and degradation of the porous matrix [19]. Based on these previous studies and the present results, the CPT-functionalized DBR PSi particles investigated here are primarily intended as a proof-of-concept platform for localized drug release combined with intrinsic optical monitoring. In future biomedical applications, changes in the characteristic reflectivity of the photonic particles could provide a label-free optical readout of drug-release behavior in locally administered or optically accessible delivery systems. Further optimization of particle size, surface functionalization, and optical readout will be required for practical in vitro or in vivo implementation.
