Bilateral Ground Reaction Force Decomposition Using an IMU-Based Neural Network in Gait and Non-Gait Movements

2.1 GRF Decomposition Method

In this study, an IMU-based NN model was developed to decompose the total GRF into bilateral GRFs. The NN input consisted of time-series data and constant inputs. The time-series data included the 3-axis total GRF and, for the selected body segments, the 3-axis angular velocity, 3-axis acceleration of the segment center of mass, and 3-axis attitude vector estimated from the IMU signals. The constant inputs were body mass and body height. In this study, to evaluate the effect of segment configuration on decomposition performance, the NNs were developed using a consistent network structure and training procedure across multiple segment configurations. Accordingly, the body segments used as inputs varied depending on the segment configuration. The NN output was the 3-axis decomposition variable d=[d_x, d_y, d_z]^T. The variable d was designed to account for the different decomposition characteristics of the horizontal and vertical components of the total GRF. For the horizontal components, because the GRFs of the two feet may act in opposite directions, d_x and d_y were designed as deviation terms representing the difference in force between the two feet. For the vertical component, because the GRFs of the two feet act in the same direction, d_z was designed as a ratio term representing the load-sharing between the left and right feet. In addition, to prevent unrealistic vertical GRF decomposition, d_z was constrained to a range between 0 and 1. Using this d, the total GRF can be decomposed such that the sum of the bilateral GRFs matches the total GRF. The decomposed right GRF, $$ {\widehat{\mathbf{F}}}_R$$, was calculated from d estimated by the NN and the total GRF, F_T, as follows.

Using the calculated $$ {\widehat{\mathbf{F}}}_R$$, the decomposed left GRF, $$ {\widehat{\mathbf{F}}}_L$$, was obtained as follows.

Fig. 1 shows the framework of the bilateral GRF decomposition method.

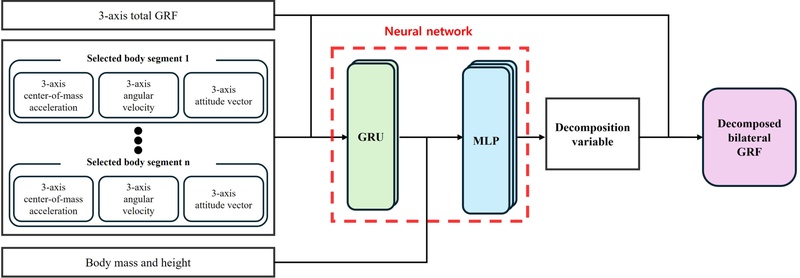

Fig. 1.

Framework of the bilateral GRF decomposition method.

The decomposition NN consisted of a gated recurrent unit (GRU) and a multilayer perceptron (MLP). After standardization using the mean and standard deviation, the time-series input data were fed into two stacked GRU layers, each with 256 hidden units. The hidden state output from the GRU was then fed into the MLP together with the constant inputs. The MLP consisted of two hidden fully connected layers, each with 256 hidden units, and an output layer. The ReLU was used as the activation function for the hidden layers. In addition, dropout rates of 0.1 and 0.5 were applied to the hidden layers of the GRU and MLP, respectively. To mitigate training imbalance caused by differences in magnitude among the output components, min-max normalization was applied to the outputs, and the values were restored to their original range through inverse transformation. Mean squared error was used as the loss function, the Ranger optimizer was used for optimization, and gradient clipping was applied to improve training stability. For NN training, the learning rate, batch size, input sequence length, number of epochs, and gradient clipping threshold were set to 0.001, 64, 300, 100, and 1, respectively.

2.2 Experimental Validation

This study was conducted using a dataset that was previously collected in the authors’ laboratory, and this dataset is publicly available [24]. The experimental setup consisted of IMUs, a front-to-rear split-belt instrumented treadmill, and an optical motion capture (OMC) system. One IMU was attached to each thigh, shank, and foot on both sides. The instrumented treadmill independently measured bilateral GRF using force plates embedded in each belt, and in the non-gait trials, the left and right feet were positioned on separate belts so that the GRF of each foot could be measured individually. The OMC system was used to obtain the positions of markers attached to the IMU clusters and segments, and these data were leveraged to determine the orientations of the IMUs and segments. The obtained IMU-to-segment orientation information was then used to estimate the kinematic variables of each segment from the IMU signals. The IMU-to-segment orientation may also be acquired using a measurement system other than the OMC system. Uncertainties in the resulting kinematic variables may affect the decomposition performance. All measurement devices were temporally synchronized using a hardware trigger and post-processing alignment.

Twelve subjects participated in the experiment, and each subject performed 12 gait trials and 10 non-gait movement trials. Table 1 presents the subject information. The gait trials consisted of nine walking trials and three running trials on the instrumented treadmill, and the non-gait trials consisted of two trials for each of weight shift, half squat, full squat, side squat, and squat jump. Weight shift involved shifting body weight laterally while alternately lifting one leg. Half squat and full squat involved repeated flexion of the knees and hips while moving the center of mass vertically with both feet in contact with the ground, and the full squat was performed at a greater squat depth than the half squat. Side squat involved shifting the center of mass laterally with both feet in contact with the ground, while the squat jump comprised a preparatory squat followed by a jump and landing. Walking trials were performed for 2 min, running trials for 90 s, and non-gait trials for 1 min each. For the training and validation of the NN, continuous intervals spanning 50 gait cycles were used for the gait trials, and 40-s intervals were used for the non-gait trials.

Table 1.

Subject information.

The performance of the decomposition NN was evaluated using group-based 4-fold cross-validation. The 12 subjects were randomly divided into four groups, and in each fold, one group was used as the validation set and the remaining groups were used as the training set. Thus, the validation in each fold was performed on three subjects who had not been utilized for training. In addition, to examine performance differences across segment configurations, four configurations were defined using the thigh, shank, and foot segments, and their performances were compared. Method 1 (M1) used the thighs-shanks-feet configuration, Method 2 (M2) used the shanks configuration, Method 3 (M3) used the feet configuration, and Method 4 (M4) used the right shank configuration. For a comparison with the existing gait decomposition method, the STA method proposed by Ren et al. [14] was reproduced and included as Method 5 (M5). The STA assumes that the GRF of the trailing foot decreases smoothly as toe-off approaches during the double support (DS), first estimates the trailing-foot GRF, and then calculates the leading-foot GRF by subtracting the estimated trailing-foot GRF from the total GRF. Because the STA was developed for walking, it was applied only to the walking trials and not to running, which includes a flight phase without a double-support period. The ground-truth (GT) gait events were used to eliminate the effect of gait-event uncertainty. In contrast, because the NN did not directly use gait-event information as an input, its decomposition performance was evaluated for left single support (LSS), right single support (RSS), and the DS to examine how the performance varied across gait phases. Performance was evaluated using the root mean squared error (RMSE) calculated from the error magnitude.

3.1 Results

Both the proposed NN and the STA are methods for decomposing the total GRF into bilateral GRFs such that the sum of the decomposed bilateral GRFs matches the total GRF. Therefore, the errors in the decomposed left and right GRFs are equal in magnitude and opposite in direction. Accordingly, the decomposition performance of each method was evaluated based on the decomposed right GRF.

In addition, all results were normalized by each subject’s body mass and are reported in N/kg.

Table 2 shows the RMSE for each method, calculated from the error magnitude of the decomposed right GRF. M1 showed average RMSEs of 0.34 and 0.35 N/kg for gait and non-gait, respectively, indicating similar performance across the two movement categories. It also showed the lowest average RMSE in non-gait and the best overall performance. M2 showed average RMSEs of 0.33 and 0.40 N/kg for gait and non-gait, respectively; although the RMSE increased slightly in non-gait relative to gait, its overall performance remained reasonably good. For M3, the non-gait RMSE was 0.40 N/kg higher than the gait RMSE, and its non-gait RMSE was the largest among all methods. M3 showed the poorest performance in most non-gait movements, especially in the side squat, where the RMSE reached 1.19 N/kg. For M4, the non-gait RMSE was 0.18 N/kg higher than the gait RMSE. For walking, the RMSE of M5 was 0.84 N/kg, which was twice that of M4, the second poorest-performing method. For gait, the difference in the average RMSE among the NN-based methods was within 0.03 N/kg. For non-gait movements, the difference in the average RMSE between M1 and M2 was small at 0.05 N/kg, whereas the corresponding differences for M3 and M4 relative to M1 were 0.38 and 0.19 N/kg, respectively.

Table 2.

Method-wise RMSE for gait and non-gait movements, calculated from the right GRF error magnitude (N/kg). Values in parentheses indicate standard deviations.

Fig. 2 shows the decomposed right GRF and error magnitude for each method over a selected interval of walking, with the bottom plot showing the error magnitude with M5 omitted. The NN methods generally showed similar error magnitudes, whereas the error magnitude of M5 increased up to approximately 2.5 N/kg and was overall larger than those of the NN-based methods. Figs. 3 and 4 show the decomposed right GRF and error magnitude for each method over selected intervals of weight shift and the side squat, respectively. In Fig. 3, the results of M1 and M2 were similar to the GT, whereas those of M3 and M4 exhibited trends that differed slightly from the GT. The error magnitude of M3 was large in some intervals, whereas that of M4 was low during RSS but high in DS and LSS. In Fig. 4, the results of M1, M2, and M4 closely matched the GT across all axes, whereas M3 showed clear differences from the GT on the y- and z-axes. The error magnitudes of M1 and M2 were reasonably low. For M3, the error magnitude exceeded approximately 2 N/kg in the interval where the GT increased on the z-axis, representing the largest error magnitude among all methods. M4 tended to show relatively large errors in some intervals. Fig. 5 shows the subject-wise average RMSEs of M1 and M2. Across the subjects, the RMSE difference between M1 and M2 ranged from 0.01 to 0.11 N/kg, indicating that the performance of M1 and M2 was similar for most subjects.

Fig. 2.

Zoomed-in view of the decomposed right GRF (N/kg) and error magnitude during walking, with the bottom panel showing the error magnitude excluding M5.

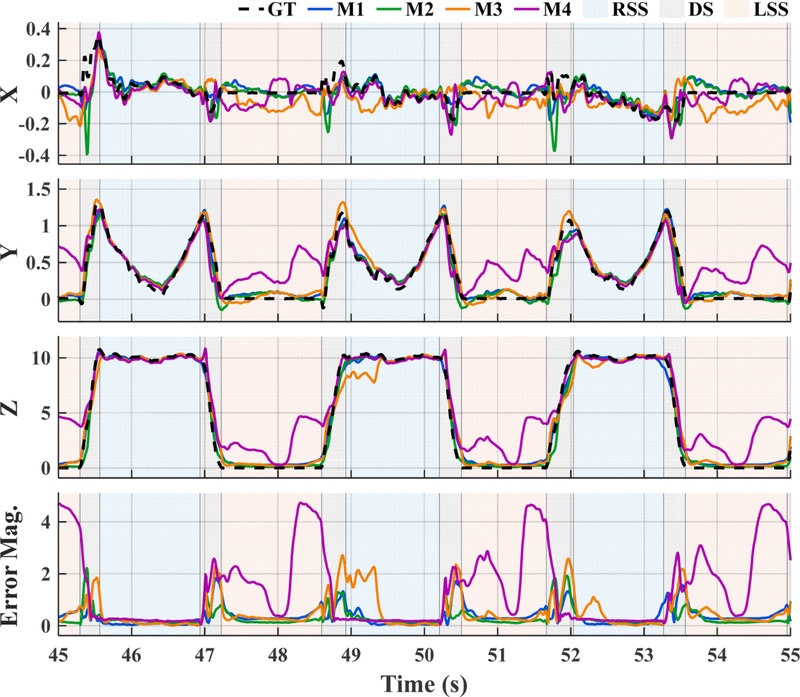

Fig. 3.

Zoomed-in view of the decomposed right GRF (N/kg) and error magnitude during weight shift.

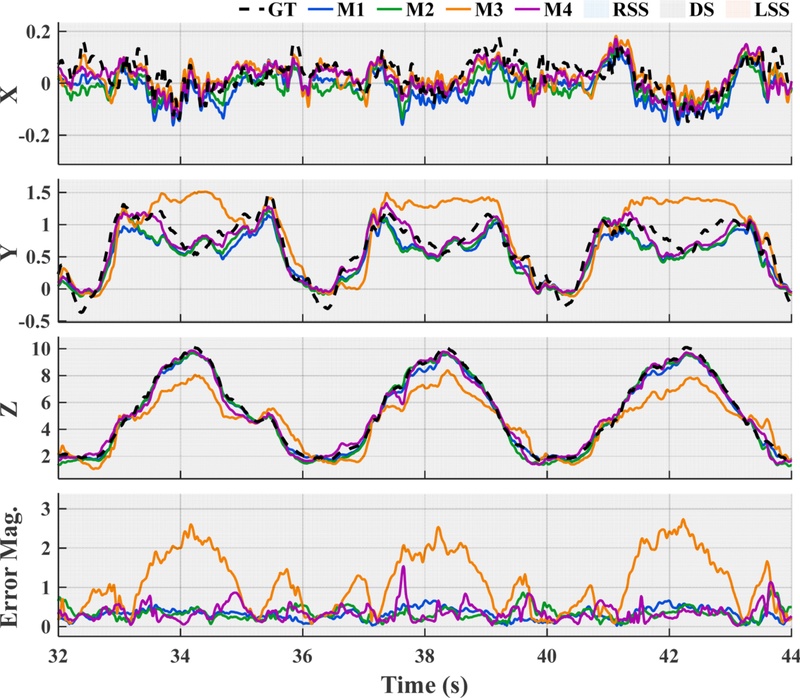

Fig. 4.

Zoomed-in view of the decomposed right GRF (N/kg) and error magnitude during the side squat.

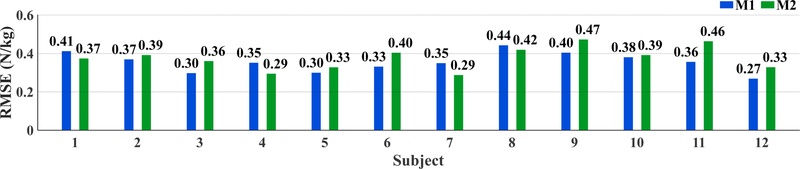

Fig. 5.

Subject-wise RMSEs for M1 and M2, calculated from the right GRF error magnitude (N/kg).

3.2 Discussions

Gait is characterized by a cyclic pattern and by a relatively regular transfer of body weight from one foot to the other during the DS phase. Accordingly, the load-sharing pattern between the two feet follows a relatively regular pattern, which may have provided favorable conditions for bilateral GRF decomposition. Indeed, all NN methods tended to outperform the STA during walking. In addition, the performance differences among the segment configurations selected in this study were small in gait. This suggests that even limited segment configurations can provide sufficient information for the decomposition. Furthermore, although gait-event information was not provided as input, the errors were relatively small in LSS and RSS. This may be attributed to the fact that the NNs learned periodic patterns related to the gait cycle and gait events from the continuous kinematic information captured by the IMUs. The decomposition NN also showed a lower RMSE during running than during walking. This is likely because the DS interval, in which relatively large errors tend to occur, is shorter in running than in walking.

M2, M3, and M4 tended to show higher RMSEs during non-gait movements than during gait. This may be attributed to the fact that, unlike gait, non-gait movements do not exhibit clear regularity and, in many cases, involve postural changes in the lower-limb segments together with changes in bilateral GRF while both feet remain in contact with the ground, which may make decomposition relatively difficult. Therefore, in non-gait movements, the segment configuration becomes increasingly important because it determines whether sufficient kinematic information for the decomposition process can be obtained.

M1, which used information from the greatest number of segments, showed the best overall performance across both gait and non-gait movements. This indicates that the simultaneous use of the kinematic information obtained from the bilateral thighs, shanks, and feet was advantageous for bilateral GRF decomposition. The squat jump is a dynamic non-gait movement consisting of a preparatory squat, jump, and landing, and the decomposition NN also showed acceptable performance for this movement. Therefore, the proposed method may also be applicable to certain dynamic movements with similar characteristics, such as jump landings. However, achieving this performance requires six IMUs, which limits the practical application because of the high sensor burden.

Despite being a simple configuration using only the shanks, M2 showed acceptable performance, with RMSEs within 0.07 N/kg of those of M1 across both gait and non-gait movements. In other words, M2 showed performance comparable to that of M1 even though it did not use information from the bilateral thighs or feet. This indicates that the bilateral shanks can provide sufficient information for the decomposition in both gait and non-gait movements. In particular, in non-gait movements such as weight shift, in which one leg is lifted, and side squat, in which the center of mass shifts, information on the orientations and relative motions of the bilateral shanks appears to be effective for the decomposition. Therefore, M2 can be regarded as the most practical configuration when both performance and practicality are considered.

M3, the configuration utilizing only the feet, exhibited acceptable performance in gait but the poorest performance in most non-gait movements. In particular, its performance decrease was most pronounced during the side squat. This can be attributed to the fact that, when both feet remain continuously in contact with the ground, changes in foot-segment posture are limited and do not directly reflect kinematic information related to the hip or knee.

M4, the simplest configuration using only the right shank, showed acceptable performance in gait. This indicates that the kinematic information from a unilateral shank alone can provide sufficient information for the decomposition. However, in non-gait movements, it showed somewhat inferior performance compared with M1 and M2. In particular, during the LSS interval of weight shift, the error of M4, which used only the information from the right shank, was larger than that of M2, which used bilateral shank information. These results show that unilateral segment information alone has limitations in providing the information required for bilateral GRF decomposition during non-gait movements. These findings suggest that bilateral information is important for decomposition in non-gait movements.
